IPBT-102-H1-T-D-GP

Headers, Male Pins Overview

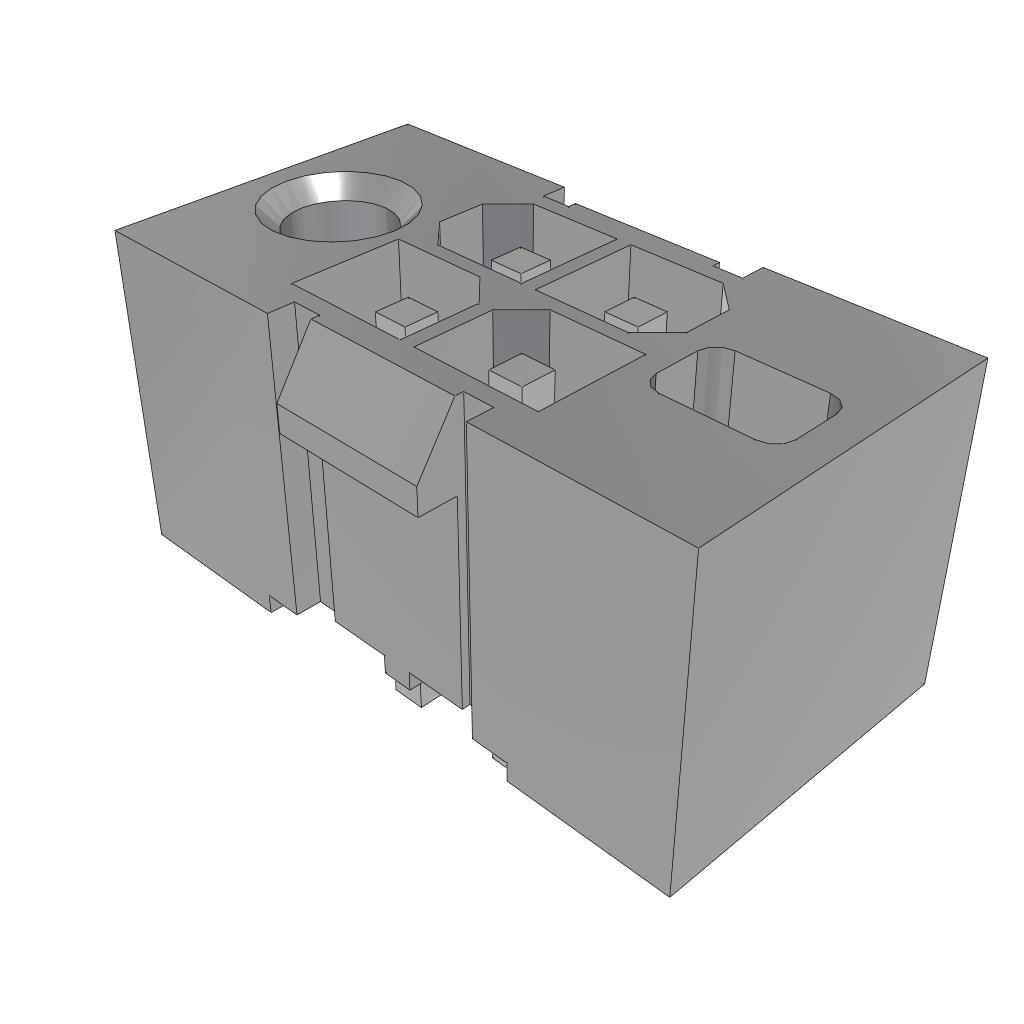

The IPBT-102-H1-T-D-GP is a Power Mate® isolated power terminal header manufactured by Samtec Inc. It features a 4-position, 2-row configuration with a 0.165-inch (4.20mm) pitch. Designed for through-hole mounting, the connector utilizes copper alloy contacts with tin plating on both mating and tail sections. The housing is constructed from black liquid crystal polymer (LCP), rated UL94 V-0 for flammability. Electrical ratings include 400VAC and 565VDC, operating within a temperature range of -55°C to 105°C.

Headers, Male Pins Feature Summary

• Isolated power terminal design with four-wall shielding for enhanced safety
• Compatible with polarized guide posts for secure mating alignment
• Surface mount or through-hole termination options available in series

Headers, Male Pins Applications

• Board-to-board power distribution systems
• Discrete wire cable interconnections
• High-power isolated circuit interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Samtec documentation to ensure correct pin count, row configuration, and mounting style. Confirm that the tin-plated contacts meet the required corrosion resistance standards for the intended environment. Check RoHS3 compliance status if restricted substances are a concern. Ensure the PCB footprint matches the specified through-hole dimensions to prevent assembly errors.

Headers, Male Pins Selection Notes

Select this component when high-voltage isolation and robust mechanical latching are required. The 4.20mm pitch supports higher current capacities compared to standard signal headers. Consider the insulated housing material properties for thermal stability. Evaluate the mating force requirements associated with the guide post system. Ensure the selected variant aligns with the specific board layout constraints and available mounting space.

Headers, Male Pins Part Context

This part belongs to the Power Mate® IPBT series, designed for high-power applications requiring isolated terminals. The series offers various configurations including single and double rows with different mounting styles. It is engineered for reliable performance in demanding industrial and commercial environments where electrical isolation is critical.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 4.20mm pitch, 4-position count, and through-hole termination. Verify compatibility with existing guide posts and mating connectors. Cross-reference insulation height and contact length to ensure mechanical fit.
