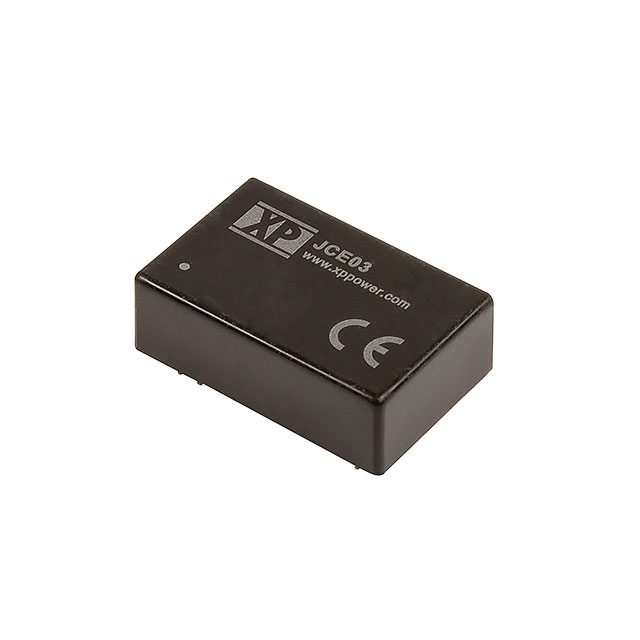

JCE0348D12

JCE0348D12 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists XP Power. Its product description is DC DC CONVERTER +/-12V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for JCE0348D12

• Description：DC DC CONVERTER +/-12V 3W
• Series：JCE (3W)
• Mfr：XP Power
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-12V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：125mA, 125mA
• Power (Watts)：3 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 100°C
• Efficiency：81%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 8 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Standard Number：62368-1
