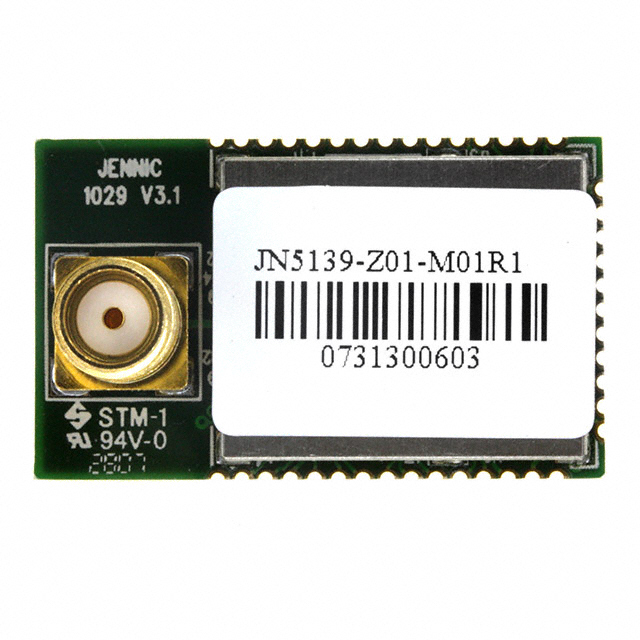

RF Transceiver Modules And Modems JN5139-Z01-M/01R1V product image

JN5139-Z01-M/01R1V

$20.53

Description：RF TXRX MODULE 802.15.4SMA SMD
Series：JN5139-Z01-M0x
Mfr：NXP USA Inc.
Package：Tape & Reel (TR)

SKU:cad588eaaf5a Category: RF Transceiver Modules and Modems Brand: NXP USA Inc.

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

JN5139-Z01-M/01R1V is listed in the RF Transceiver Modules And Modems range at ChipApex. The manufacturer field lists NXP USA Inc.. Its product description is RF TXRX MODULE 802.15.4SMA SMD. Review the specifications below when checking this part for your BOM.

RF Transceiver Modules And Modems specifications for JN5139-Z01-M/01R1V

Description：RF TXRX MODULE 802.15.4SMA SMD
Series：JN5139-Z01-M0x
Mfr：NXP USA Inc.
Package：Tape & Reel (TR)
RF Family/Standard：802.15.4
Protocol：Zigbee®
Modulation：-
Frequency：2.4GHz
Data Rate：-
Power - Output：2.5dBm
Sensitivity：-96dBm
Serial Interfaces：I2C, SPI, UART
Antenna Type：Antenna Not Included, SMA
Utilized IC / Part：-
Memory Size：192kB ROM, 96kB RAM
Voltage - Supply：2.2V ~ 3.6V
Current - Receiving：37mA
Current - Transmitting：37mA
Mounting Type：Surface Mount
Operating Temperature：-40°C ~ 85°C
Package / Case：Module

RF Transceiver Modules And Modems datasheet and documents for JN5139-Z01-M/01R1V
