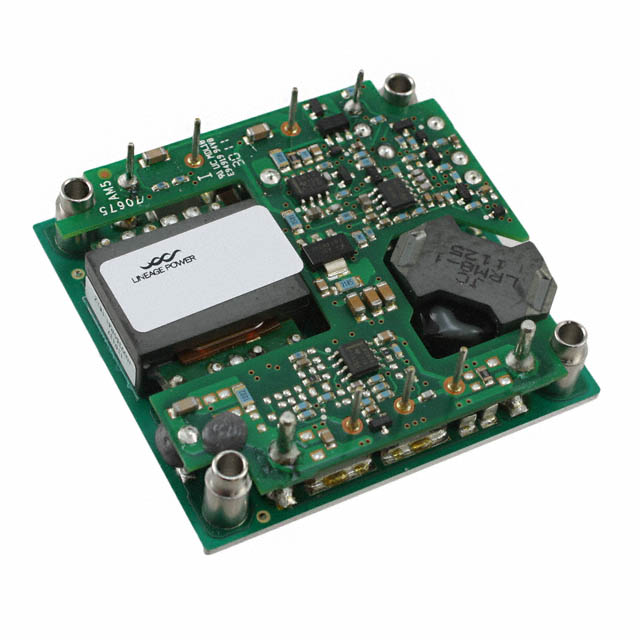

JNW350R641Z

JNW350R641Z is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 28V 350W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for JNW350R641Z

• Description：DC DC CONVERTER 28V 350W
• Series：JNW350R (350W)
• Mfr：OmniOn Power™
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：28V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：12.5A
• Power (Watts)：350 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：92%
• Mounting Type：Through Hole
• Package / Case：9-DIP Module, 1/2 Brick
• Size / Dimension：2.39" L x 2.27" W x 0.50" H (60.7mm x 57.7mm x 12.7mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for JNW350R641Z
