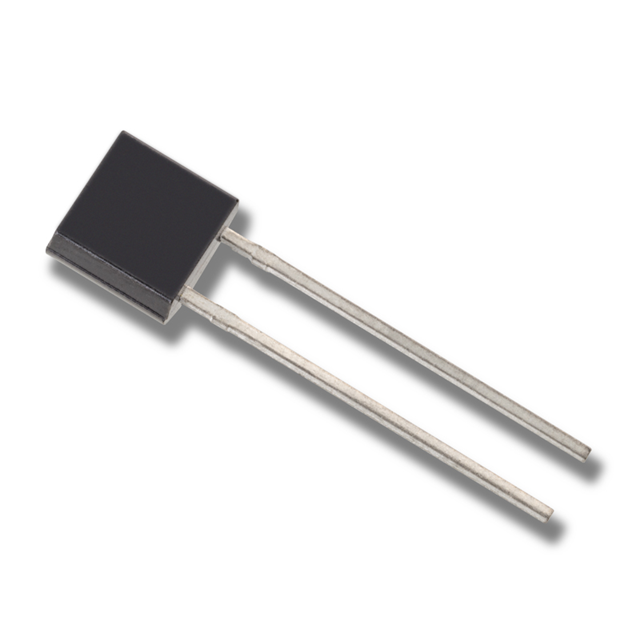

JPAD50 TO-92 2L

$5.84

Description：DIODE STANDARD 35V 10MA TO92
Series：PAD
Mfr：Linear Integrated Systems, Inc.
Package：Bulk

SKU:ce598148478a Category: Single Diodes Brand: Linear Integrated Systems, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

JPAD50 TO-92 2L is listed in the Single Diodes range at ChipApex. The manufacturer field lists Linear Integrated Systems, Inc.. Its product description is DIODE STANDARD 35V 10MA TO92. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for JPAD50 TO-92 2L

Description：DIODE STANDARD 35V 10MA TO92
Series：PAD
Mfr：Linear Integrated Systems, Inc.
Package：Bulk
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：35 V
Current - Average Rectified (Io)：10mA
Voltage - Forward (Vf) (Max) @ If：1.5 V @ 5 mA
Speed：Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：50 pA @ 20 V
Capacitance @ Vr, F：1.5pF @ 5V, 1MHz
Mounting Type：Through Hole
Package / Case：TO-226-2, TO-92-2 (TO-226AC)
Supplier Device Package：TO-92
Operating Temperature - Junction：-55°C ~ 150°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for JPAD50 TO-92 2L

JPAD50 TO-92 2L

Single Diodes Overview

The JPAD50 is a picoampere diode from the PAD series by Linear Integrated Systems, designed for ultra-low leakage applications. It features a reverse breakdown voltage of -35V and a maximum reverse leakage current of -50pA at -20V. The device operates within a junction temperature range of -55°C to +150°C with a continuous power dissipation of 350mW. It utilizes an SOT-23 package.

Single Diodes Feature Summary

Direct replacement for Siliconix PAD series components
Ultra-low reverse leakage current capability
High reverse breakdown voltage stability

Single Diodes Applications

Operational amplifier input differential voltage limiting
Sample and hold circuit offset reduction
JFET switch gate protection

Single Diodes Procurement Notes

Verify the specific suffix against official datasheets to confirm pinout and electrical tolerances. Ensure the sourcing channel provides original manufacturer documentation to validate authenticity and revision status before integration into designs.

Single Diodes Selection Notes

Select this component when circuit requirements demand minimal reverse leakage currents in the picoampere range. Consider the -35V breakdown rating and SOT-23 footprint compatibility during schematic capture and layout planning.

Single Diodes Part Context

Linear Integrated Systems manufactures precision discrete semiconductors utilizing expertise derived from historical industry leaders. The PAD series specifically addresses niche requirements for high-impedance signal paths where standard diodes introduce unacceptable leakage errors.
