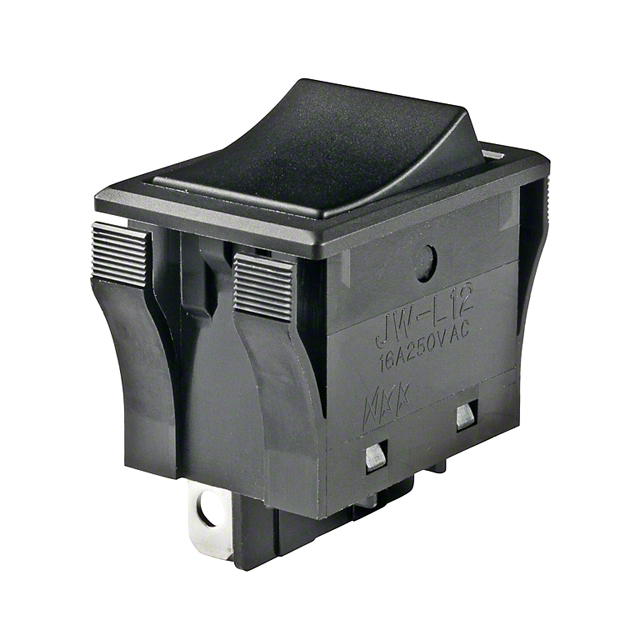

Rocker Switches JWL12RAA/UCV product image

JWL12RAA/UCV

$11.35
  • Description：SWITCH ROCKER SPDT 16A 125V
  • Series：JW
  • Mfr：NKK Switches
  • Package：Bulk,Box

SKU:b0f9a34e8201 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

JWL12RAA/UCV is listed in the Rocker Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH ROCKER SPDT 16A 125V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for JWL12RAA/UCV

  • Description：SWITCH ROCKER SPDT 16A 125V
  • Series：JW
  • Mfr：NKK Switches
  • Package：Bulk,Box
  • Mounting Type：Panel Mount, Snap-In
  • Circuit：SPDT
  • Switch Function：On-On
  • Current Rating (Amps)：16A (AC)
  • Voltage Rating - AC：125 V
  • Voltage Rating - DC：-
  • Actuator Type：Concave (Curved)
  • Color - Actuator/Cap：Black
  • Actuator Marking：No Marking
  • Illumination Type, Color：-
  • Illumination Voltage (Nominal)：-
  • Termination Style：Solder, Quick Connect - 0.187" (4.7mm)
  • Ingress Protection：Dust Proof
  • Features：Epoxy Sealed Terminals
  • Panel Cutout Dimensions：Rectangular - 29.50mm x 20.50mm
  • Operating Temperature：-25°C ~ 70°C
  • Approval Agency：CSA, UL, VDE

Rocker Switches datasheet and documents for JWL12RAA/UCV

JWL12RAA/UCV

Explore related parts through Switches, all product categories, ChipApex homepage.

How to buy
Online and offline orders are supported. If the item is available for online purchase, you can place it in the cart; for wholesale pricing, please contact our product manager for a quote.
Payment Method
Payment methods: T/T, WeChat Pay, credit cards, Google Pay, Apple Pay . Buyer covers shipping, fees, duties, and taxes; contact our product manager if you need a contract/procurement process.
Delivery time
In-stock items usually ship within 24 hours. Otherwise, shipment is arranged 1 to 2 days after the items arrive at our warehouse. Timing depends on destination and shipping method.
Freight calculation
Freight cost depends on destination, package size, and weight . We offer shipping options via DHL, FedEx, UPS, and TNT , and can ship using your freight account upon request.
Mode of Transportation
We ship via DHL, FedEx, UPS, and TNT. If you prefer a specific logistics provider, we can ship using your designated carrier.
Return and Refund
Returns are accepted within 60 days of invoice with RMA approval. Items must be resalable; original invoice and test report are required. No returns for customer errors.
