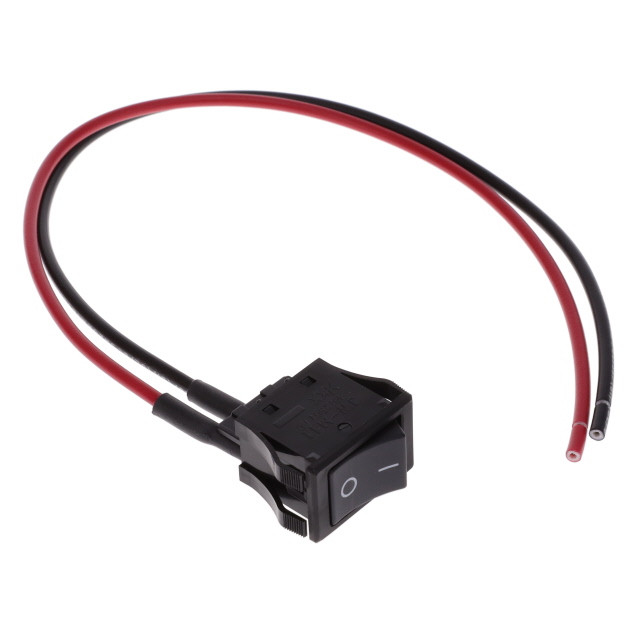

JWM11RA2A/UCV-WL

JWM11RA2A/UCV-WL is listed in the Rocker Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH ROCKER SPST 10A 125V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for JWM11RA2A/UCV-WL

• Description：SWITCH ROCKER SPST 10A 125V
• Series：JW
• Mfr：NKK Switches
• Package：Box
• Mounting Type：Panel Mount, Snap-In
• Circuit：SPST
• Switch Function：On-Off
• Current Rating (Amps)：10A (AC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：-
• Actuator Type：Concave (Curved)
• Color - Actuator/Cap：Black
• Actuator Marking：O -
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Wire Leads
• Ingress Protection：Dust Proof
• Features：-
• Panel Cutout Dimensions：Rectangular - 24.00mm x 15.40mm
• Operating Temperature：-25°C ~ 70°C
• Approval Agency：CSA, UL, VDE

Rocker Switches datasheet and documents for JWM11RA2A/UCV-WL
