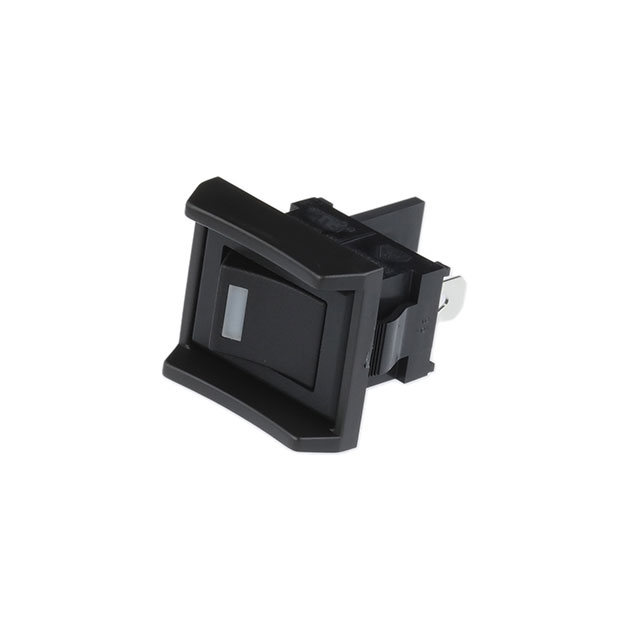

JWS11BAAC-A

JWS11BAAC-A is listed in the Rocker Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH ROCKER SPST 6A 125V. Review the specifications below when checking this part for your BOM.

Rocker Switches specifications for JWS11BAAC-A

• Description：SWITCH ROCKER SPST 6A 125V
• Series：JWS
• Mfr：NKK Switches
• Package：Bulk
• Mounting Type：Panel Mount, Snap-In
• Circuit：SPST
• Switch Function：On-Off
• Current Rating (Amps)：6A (AC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：-
• Actuator Type：Concave (Curved) - Illuminated
• Color - Actuator/Cap：Black
• Actuator Marking：No Marking
• Illumination Type, Color：LED, Red
• Illumination Voltage (Nominal)：1.8 VDC
• Termination Style：Solder, Quick Connect - 0.187" (4.7mm)
• Ingress Protection：Dust Proof
• Features：With Barrier
• Panel Cutout Dimensions：Rectangular - 19.20mm x 12.90mm
• Operating Temperature：-25°C ~ 50°C
• Approval Agency：CSA, UL, VDE

Rocker Switches datasheet and documents for JWS11BAAC-A
