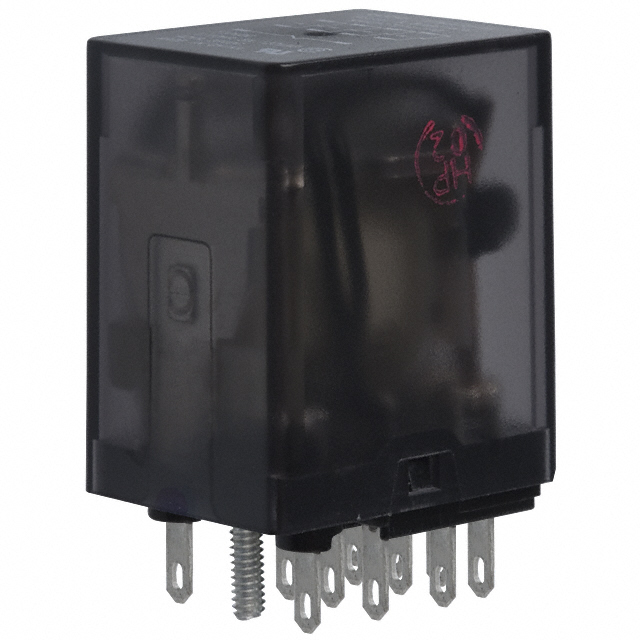

KHAU-17D13-24

KHAU-17D13-24 is listed in the Signal Relays, Up To 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE 4PDT 2A 24V. Review the specifications below when checking this part for your BOM.

Signal Relays, Up To 2 Amps specifications for KHAU-17D13-24

• Description：RELAY GEN PURPOSE 4PDT 2A 24V
• Series：KHA
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Bulk
• Mounting Type：Socketable
• Coil Voltage：24VDC
• Contact Form：4PDT (4 Form C)
• Contact Rating (Current)：2:00 AM
• Switching Voltage：240VAC - Max
• Load - Max Switching：240VA
• Coil Current：37.5 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Plug In
• Seal Rating：-
• Coil Insulation：Class B
• Must Operate Voltage：18 VDC
• Must Release Voltage：-
• Operate Time：13 ms
• Release Time：6 ms
• Operating Temperature：-45°C ~ 70°C
• Contact Material：Silver Nickel (AgNi), Gold (Au)
• Approval Agency：CSA, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-
