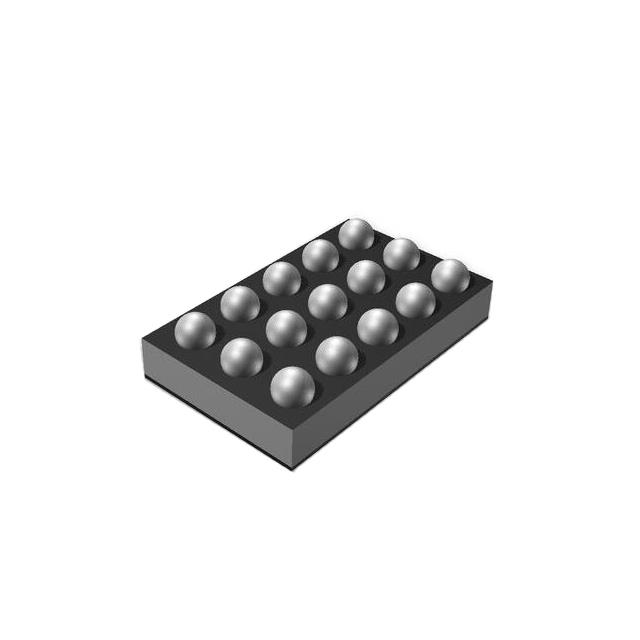

KTB8400AEDAA-TR

Voltage Regulators - DC DC Switching Regulators Overview

The KTB8400AEDAA-TR is a low-voltage buck regulator manufactured by Kinetic Technologies. It features an I2C programmable interface and operates at a switching frequency of 2.4MHz. The device provides a default output voltage of 1.5625V and supports an output current of 3A. Designed for efficient power management, it offers accurate fixed switching frequency performance and fast transient response capabilities suitable for demanding digital loads.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• I2C programmable control interface
• Accurate fixed switching frequency operation
• Fast transient response capability

Voltage Regulators - DC DC Switching Regulators Applications

• CPU power supply
• Netbook power systems
• Tablet power management

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required packaging or temperature grades. Confirm that the component meets all necessary regulatory standards for the target application environment. Cross-reference the manufacturer datasheet for detailed electrical characteristics and thermal requirements before integration into final designs.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this regulator when a compact solution with high efficiency and precise digital control is required. The I2C interface allows for dynamic adjustment of output parameters. Ensure the input voltage range aligns with the system's power source and that the thermal design accommodates the expected load conditions for reliable long-term operation.

Voltage Regulators - DC DC Switching Regulators Part Context

This component belongs to the KTB8400 series of power management integrated circuits from Kinetic Technologies. It is categorized under switching voltage regulators within the PMIC family. The part is designed to provide stable power delivery for portable electronic devices requiring efficient voltage conversion and rapid response to load changes.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

The KTB8400AEDAA-MMEV01 is an evaluation board associated with this part number. No direct substitute part numbers are confirmed in the provided documentation.
