KTC2115ECAB-TA

Voltage Regulators - DC DC Switching Regulators Overview

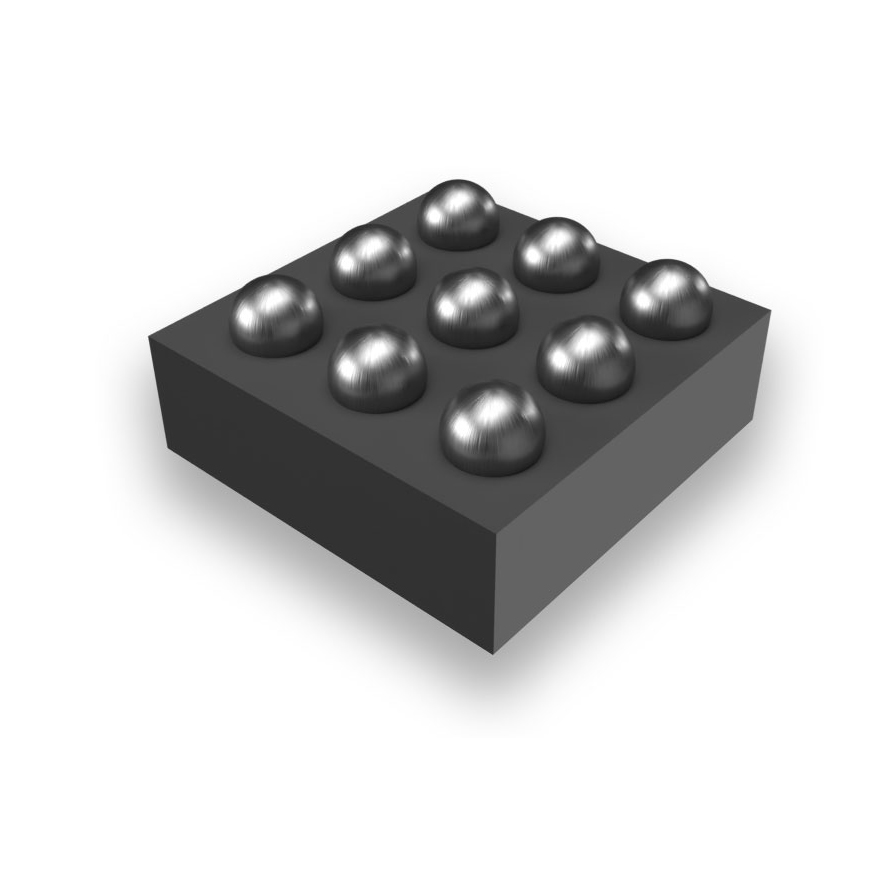

The KTC2115ECAB-TA is a synchronous boost switching voltage regulator IC manufactured by Kinetic Technologies. It operates with an input voltage range of 2.7 V to 5.5 V and provides a fixed positive output of 5 V. The device supports a maximum load current of 1.5 A and utilizes a high switching frequency of 2.5 MHz for improved efficiency. Packaged in a compact 9-WFBGA (WLCSP) format, it is designed for surface mount applications.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Synchronous rectification architecture for enhanced conversion efficiency
• Fixed 5V output capability from variable input sources
• High-frequency operation enabling compact external component sizing

Voltage Regulators - DC DC Switching Regulators Applications

• Battery-powered portable electronic devices
• Systems requiring step-up voltage regulation from single-cell lithium batteries
• Compact power management modules for mobile hardware

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific package marking and date code against official Kinetic Technologies documentation to ensure authenticity. Confirm that the 9-WFBGA footprint matches your PCB design requirements. Check for any specific handling precautions related to the WLCSP form factor during assembly.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a fixed 5V output is required from inputs between 2.7V and 5.5V. The 1.5A current rating suits moderate power loads. Ensure the design accommodates the 2.5MHz switching frequency noise profile and the thermal characteristics of the small WLCSP package.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the Kinetic Technologies family of switching voltage regulators. It functions as a dedicated boost converter, distinguishing itself from linear regulators by its ability to increase voltage levels efficiently. The WLCSP packaging allows for minimal board space utilization compared to larger traditional packages.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Direct substitutes must match the 9-WFBGA/WLCSP package, 5V fixed output, and 1.5A current capacity. Verify pin compatibility and electrical specifications before cross-referencing with other manufacturers' boost regulator offerings.
