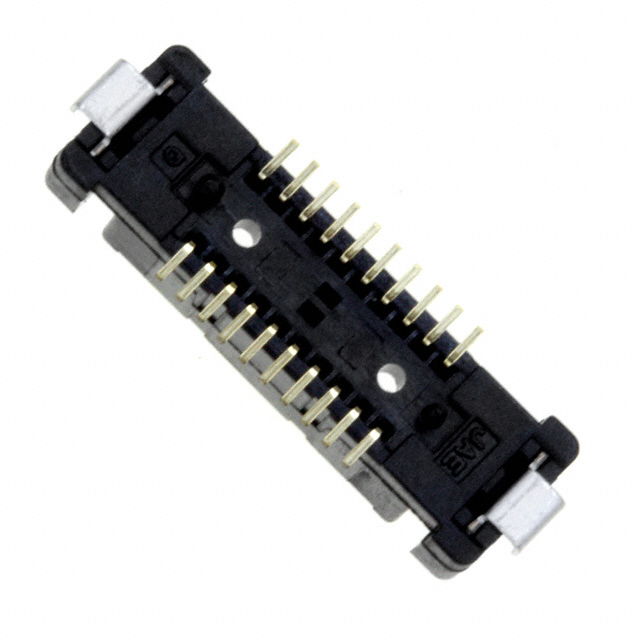

Arrays, Edge Type, Mezzanine (Board To Board) KX15-20K3DE product image

KX15-20K3DE

$2.05

Description：CONN PLUG 20POS SMD GOLD
Series：KX15
Mfr：JAE Electronics
Package：Tray

SKU:07db4e407ce4 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: JAE Electronics

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

KX15-20K3DE is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists JAE Electronics. Its product description is CONN PLUG 20POS SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for KX15-20K3DE

Description：CONN PLUG 20POS SMD GOLD
Series：KX15
Mfr：JAE Electronics
Package：Tray
Connector Type：Plug, Center Strip Contacts
Number of Positions：20
Pitch：0.031" (0.80mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Board Guide, Solder Retention
Contact Finish：Gold
Contact Finish Thickness：4.00µin (0.100µm)
Mated Stacking Heights：5mm, 8mm, 11mm, 14mm, 17mm
Height Above Board：0.187" (4.75mm)
