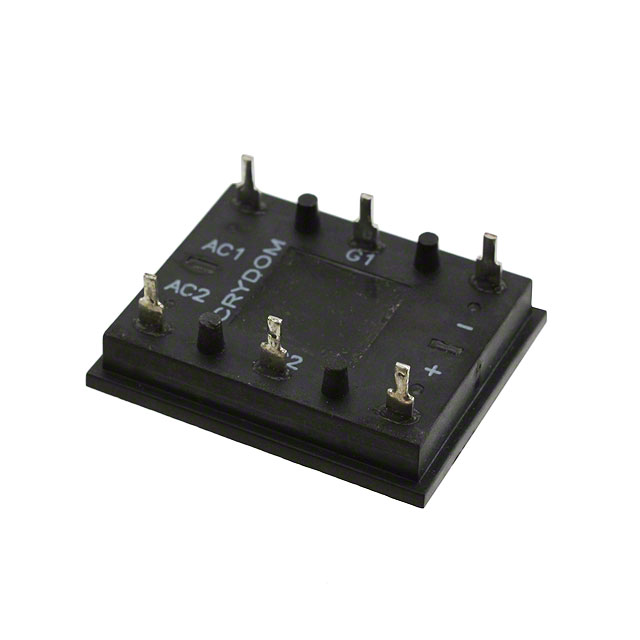

L514F

$98.01

Description：MODULE SCR/DIODE 25A 480VAC PCB
Series：L

SKU:f9ef32872add Category: SCRs - Modules Brand: Sensata-Crydom

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

L514F is listed in the SCRs - Modules range at ChipApex. The manufacturer field lists Sensata-Crydom. Its product description is MODULE SCR/DIODE 25A 480VAC PCB. Review the specifications below when checking this part for your BOM.

SCRs - Modules specifications for L514F

Description：MODULE SCR/DIODE 25A 480VAC PCB
Series：L
Mfr：Sensata-Crydom
Package：Bulk
Structure：Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes：2 SCRs, 2 Diodes
Voltage - Off State：1.2 kV
Current - On State (It (AV)) (Max)：-
Current - On State (It (RMS)) (Max)：-
Current - Non Rep. Surge 50, 60Hz (Itsm)：300A @ 60Hz
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Through Hole
Package / Case：Module
Voltage - Gate Trigger (Vgt) (Max)：3 V
Current - Gate Trigger (Igt) (Max)：100 mA
Current - Hold (Ih) (Max)：-
Grade：-
Qualification：-

SCRs - Modules datasheet and documents for L514F

L514F

SCRs - Modules Overview

The L514F is a discrete semiconductor module manufactured by Sensata-Crydom, belonging to the PGFM series. It is an SCR-Diode module constructed using Silicon technology and designed for screw mount installation. The component features a half-controlled bridge rectifier configuration containing two SCRs and two diodes. Key electrical parameters include a maximum repetitive reverse voltage (VRRM) of 480 VAC, a load current rating of 25 A, and a maximum forward impulse current of 300 A. The device operates within a junction temperature range of -40°C to 125°C.

SCRs - Modules Feature Summary

Half-controlled bridge rectifier topology integrating SCRs and diodes
Silicon-based construction for robust thermal performance
Screw mount design for secure electrical connections

SCRs - Modules Applications

Single-phase AC power control systems
Industrial rectification circuits
Solid-state relay filter applications

SCRs - Modules Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and pinout compatibility with existing PCB layouts or busbar designs. Ensure that the thermal management requirements align with the specified junction temperature limits during operation. Cross-reference the manufacturer's part number against distributor listings to avoid confusion with similar modules in the PGFM series.

SCRs - Modules Selection Notes

Select this module when a single-phase half-controlled rectifier solution is required with a 25 A current capacity. Consider the 480 VAC voltage rating for appropriate insulation and blocking capabilities. Evaluate the screw mount style against available mounting hardware constraints. Compare thermal resistance characteristics against alternative bridge rectifier options to ensure adequate heat dissipation in the target enclosure environment.

SCRs - Modules Part Context

The L514F is part of the Crydom PGFM series of discrete semiconductor modules. This series offers various circuit configurations including standard bridges and AC switches. These modules are engineered for high reliability in industrial environments, providing compact solutions for power conversion tasks. The product line emphasizes low profile designs suitable for space-constrained applications requiring robust silicon-based switching elements.
