LA B6SP-DBEB-24-1-140-R33-Z

LED Indication - Discrete Overview

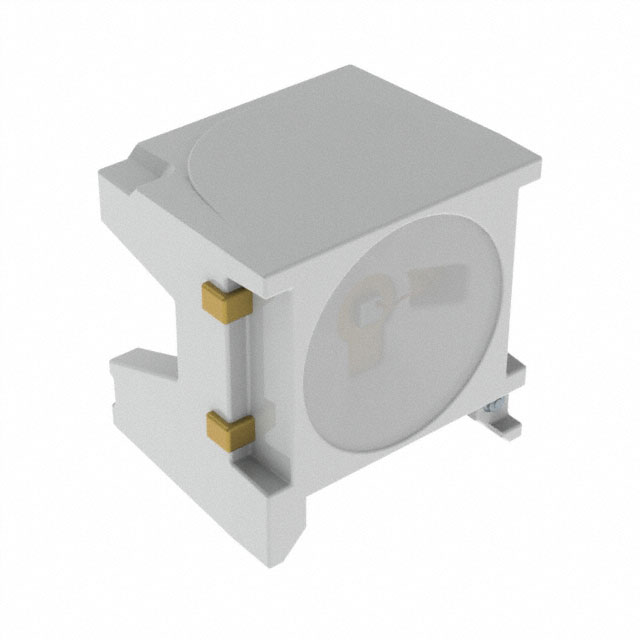

The LA B6SP-DBEB-24-1-140-R33-Z is an amber Power SIDELED from ams-OSRAM USA INC., designed for surface-mount applications. It features a 2-PLCC package with a right-angle orientation and emits light at a dominant wavelength of 617nm. The component has a typical forward voltage of 2.15V and is rated for a forward current of 140mA.

LED Indication - Discrete Feature Summary

• Right-angle emission orientation for specific board layout requirements
• Amber color output suitable for status indication
• Surface-mount PLCC package design

LED Indication - Discrete Applications

• Electronic device status indication
• Control panel signaling
• Industrial equipment monitoring

LED Indication - Discrete Procurement Notes

Verify the exact suffix configuration against official datasheets to ensure correct binning and optical characteristics. Confirm package dimensions and thermal specifications match the target PCB footprint. Check RoHS compliance status and automotive qualification requirements if applicable for the end product.

LED Indication - Discrete Selection Notes

Select this component when right-angle light emission is required in a compact SMD form factor. Ensure the circuit design supports the 140mA forward current rating. Verify that the 617nm amber wavelength meets visibility and regulatory standards for the intended application environment.

LED Indication - Discrete Part Context

This part belongs to the LA B6SP series of Power SIDELEDs, which are high-power discrete LEDs optimized for surface mounting. The series offers various colors and orientations to support diverse industrial and consumer electronics lighting needs.

LED Indication - Discrete Replacement Considerations

Consult official substitution guides for compatible alternatives within the same series or family. Verify electrical and mechanical compatibility before switching suppliers or part numbers.
