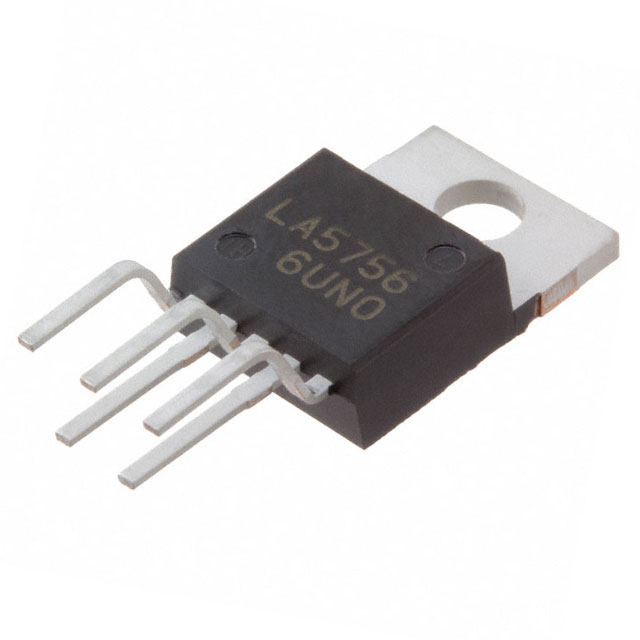

LA5756-MDB-E

Voltage Regulators - DC DC Switching Regulators Overview

The LA5756-MDB-E is a separately-excited step-down switching regulator manufactured by onsemi. It integrates an 80kHz time-base generator, current limiter, thermal shutdown circuit, and soft start circuit. The device supports the use of low ESR output smoothing capacitors to enhance reliability. Designed for high efficiency with minimal external components, it functions as a variable type DC-DC converter suitable for compact power supply designs.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Integrates an 80kHz time-base generator for fixed-frequency operation
• Includes built-in current limiting and thermal shutdown protection circuits
• Features a soft start circuit to manage inrush current during startup
• Optimized for use with low ESR output smoothing capacitors

Voltage Regulators - DC DC Switching Regulators Applications

• DC/DC converter modules
• Relay driver power supplies
• Lamp driver circuits
• Motor driver power stages

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix MDB-E against official datasheets to confirm package type and tape-and-reel configuration. Confirm RoHS compliance status and REACH SVHC declarations directly from the manufacturer's documentation before procurement. Ensure the component matches the required operating temperature range and electrical specifications for the target application.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a compact, high-efficiency step-down solution is required with minimal external part count. The integrated 80kHz frequency allows for smaller passive components compared to lower frequency regulators. Consider the thermal performance and current limit capabilities relative to the maximum load requirements of the specific system design.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the LA5756 family of separately-excited step-down switching regulators. Originally developed under Sanyo Semicon Device, which was acquired by Panasonic Corporation, the product line is now managed by onsemi. The series is characterized by its simplicity and robustness in standard DC-DC conversion applications.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Check for direct pin-compatible substitutes within the LA5756 series or equivalent step-down regulators from onsemi. Verify that any replacement maintains the 80kHz switching frequency and similar protection features such as thermal shutdown and current limiting.
