LCAT1006-07

Attenuators Overview

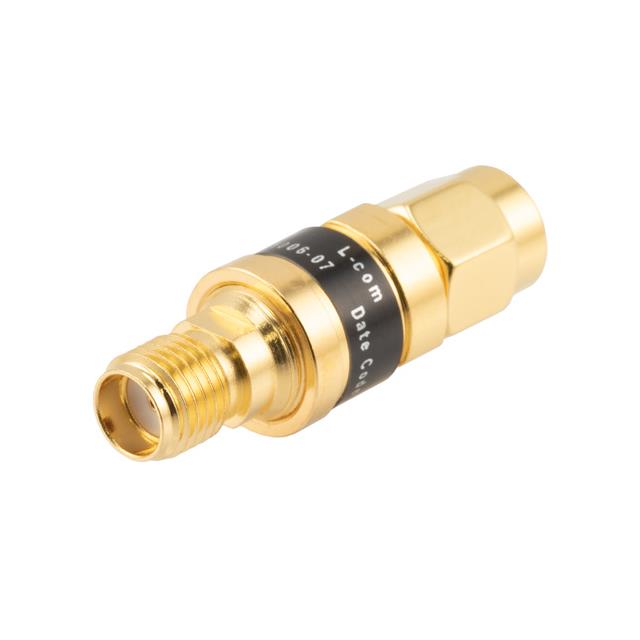

The LCAT1006-07 is a fixed RF attenuator manufactured by L-Com, designed for signal attenuation in radio frequency applications. It provides a nominal attenuation of 7 dB with a maximum attenuation specification of 7 dB. The component operates within a frequency range of 0 Hz to 18 GHz and supports a power rating of 2 W. It features SMA male-to-female connectors and maintains a characteristic impedance of 50 Ohms. The Voltage Standing Wave Ratio (VSWR) is specified at 1.35:1. The unit has a physical length of 29.97 mm and weighs 10 g. Operating temperatures range from -55 C to +125 C.

Attenuators Feature Summary

• Provides fixed 7 dB attenuation for RF signal control
• Operates across a wide DC to 18 GHz frequency spectrum
• Features durable gold-plated brass construction

Attenuators Applications

• RF signal level adjustment in communication systems
• Signal conditioning in test and measurement equipment
• Integration into wireless and satellite communication architectures

Attenuators Procurement Notes

Verify the specific part number LCAT1006-07 against official L-Com documentation to confirm the 7 dB attenuation value and SMA connector configuration. Ensure that the required operating temperature range and power handling capabilities align with the system design specifications before procurement. Cross-reference manufacturer datasheets for any updates regarding compliance or environmental certifications.

Attenuators Selection Notes

Select this component when a precise 7 dB reduction is required within an RF environment up to 18 GHz. Consider the 2 W power rating and 50 Ohm impedance match for compatibility with standard coaxial systems. Evaluate the SMA interface requirements and ensure the physical dimensions fit the available space constraints in the assembly.

Attenuators Part Context

This model belongs to the L-Com passive component series, specifically categorized under interconnect attenuators. It serves as a specialized solution for managing signal strength in high-frequency electronic circuits. The product is distinct from variable attenuators and other resistance values within the same connector family.

Attenuators Replacement Considerations

Public confirmed substitute part numbers include FMAT7487-1, PE7005-1, and PE7487-1. Verify parameter equivalence for these alternatives against the original specifications.
