LCAT7094-07

Attenuators Overview

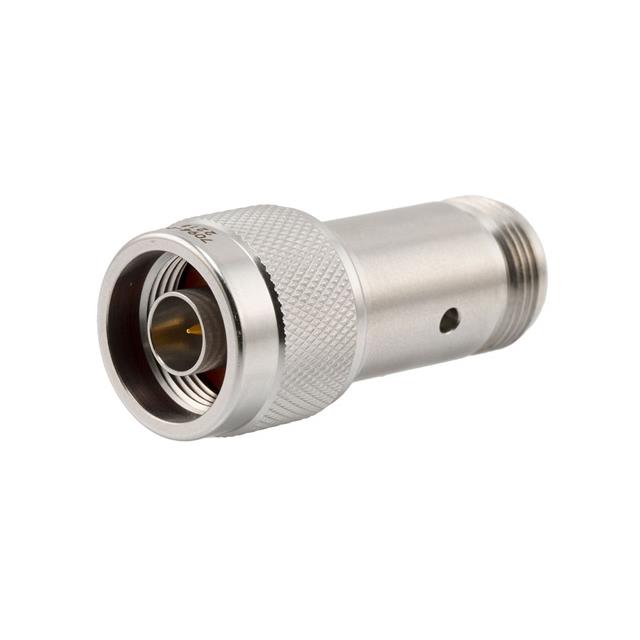

The LCAT7094-07 is a fixed RF attenuator manufactured by L-com, designed for high-frequency signal management. It provides a precise attenuation value of 7 dB across a frequency range from 0 Hz to 18 GHz. The component features a 50 Ohm impedance and can handle a maximum power load of 2 Watts. It utilizes N-Type connectors, specifically configured with a male plug on one end and a female jack on the other, facilitating direct in-line integration into coaxial cable systems.

Attenuators Feature Summary

• Provides fixed signal attenuation within specified RF ranges
• Supports standard 50 Ohm system impedance
• Features durable N-Type connector interface
• Capable of handling specified continuous power loads

Attenuators Applications

• Wireless communication systems requiring signal level adjustment
• RF test and measurement setups
• Industrial electronic systems utilizing coaxial interconnects

Attenuators Procurement Notes

Verify the specific part number suffix against official L-com documentation to confirm the exact attenuation value and connector configuration. Ensure that the required operating frequency range up to 18 GHz and the 2W power rating align with the target application's electrical specifications before procurement.

Attenuators Selection Notes

Select this component when a fixed 7 dB reduction is required in an N-Type connected circuit. Consider the 18 GHz upper frequency limit and 2W power handling capacity relative to the system's peak signals. Verify compatibility with existing N-Type male and female interfaces to ensure seamless physical integration.

Attenuators Part Context

This model belongs to L-com's line of fixed RF attenuators, which are passive components used to reduce signal amplitude without distortion. These devices are essential for protecting sensitive equipment from high-power signals and ensuring proper signal levels in transmission lines.

Attenuators Replacement Considerations

Compatible substitutes include other L-com fixed attenuators with matching N-Type interfaces and similar attenuation values, such as the LCAT7094 series variants. Cross-reference technical datasheets to ensure equivalent frequency response and power handling capabilities.
