LM25007MM/NOPB

Voltage Regulators - DC DC Switching Regulators Overview

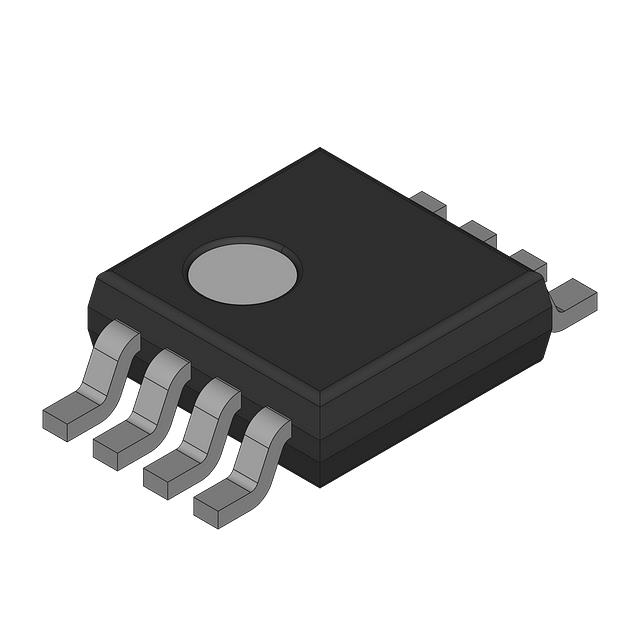

The LM25007MM/NOPB is a step-down switching regulator manufactured by Texas Instruments, originally developed under the National Semiconductor brand. It operates with an input voltage range of 9V to 42V and provides a single adjustable output from 2.5V to 37V. The device delivers up to 500mA of output current with a maximum switching frequency of 800kHz. It utilizes a synchronous buck topology without integrated synchronous rectifiers in this specific package variant context, housed in an 8-VSSOP package. The component supports operation across a junction temperature range of -40°C to 125°C.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Integrated high-side N-channel MOSFET for efficient power conversion
• Fixed-frequency current-mode control architecture
• Internal soft-start circuitry to limit inrush current
• Thermal shutdown and cycle-by-cycle current limiting protection

Voltage Regulators - DC DC Switching Regulators Applications

• Industrial point-of-load regulation
• Automotive electronics systems
• Distributed power architectures
• Battery-powered equipment

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify that the specific suffix /NOPB indicates lead-free and RoHS compliance status as per the manufacturer's datasheet revision history. Confirm the package marking and date code alignment with production lifecycle notices. Ensure the source document explicitly lists this part number as available or qualified, noting that earlier versions may be obsolete.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when a compact solution is required for stepping down higher voltages to lower levels with moderate current demands. The fixed-frequency operation simplifies filter design compared to hysteretic controllers. Consider the thermal performance within the 8-VSSOP package for your specific PCB layout and ambient conditions.

Voltage Regulators - DC DC Switching Regulators Part Context

This part belongs to the LM25007 family of simple switcher regulators. It shares functional similarities with other wide-input voltage buck converters but is distinct in its specific pinout and control loop characteristics defined by the National Semiconductor/Texas Instruments design lineage.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Direct substitutes include LM25007MMX/NOPB and LM25007MM/NOPB. Verify pin compatibility and electrical parameter equivalence before substitution.
