LPTC-V-6.8-2-200

Common Mode Chokes Overview

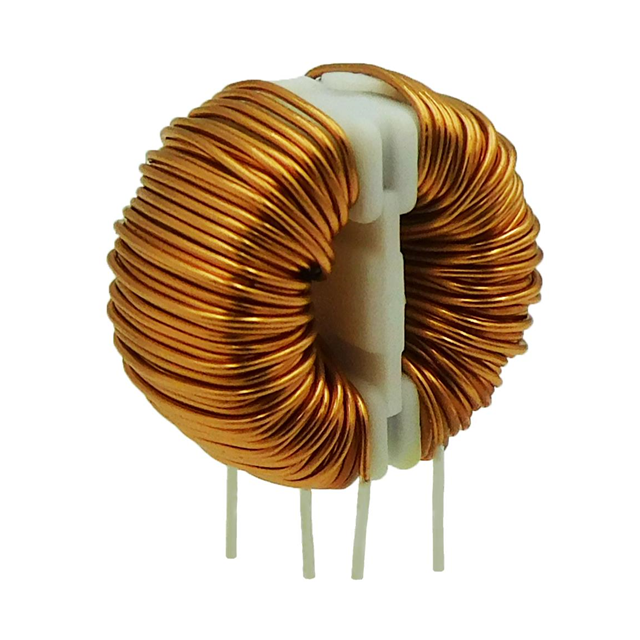

The LPTC-V-6.8-2-200 is a toroidal common mode choke manufactured by Signal Transformer. It features an inductance of 6.8 mH measured at 1 kHz and supports a current rating of 2 A. The component utilizes a ferrite core material with a diameter of 22 mm and lead wire diameter of 0.5 mm. Its direct current resistance (DCR) is specified as 200 mOhm. Designed for through-hole mounting, this device belongs to the LPTC-V series and offers low DC resistance characteristics suitable for power line filtering applications.

Common Mode Chokes Feature Summary

• Toroidal construction utilizing ferrite core material for effective noise suppression
• Low direct current resistance (DCR) design optimized for power line efficiency
• Through-hole termination style compatible with standard PCB assembly processes

Common Mode Chokes Applications

• Power line filtering in electronic equipment
• Common mode noise suppression circuits
• Electromagnetic interference (EMI) countermeasures

Common Mode Chokes Procurement Notes

Verify the specific manufacturer designation, as Signal Transformer products are often distributed under Bel brand identifiers. Confirm that the ordering suffix matches the required inductance and current ratings exactly. Ensure the through-hole package dimensions align with your board layout constraints before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when a 6.8 mH inductance at 1 kHz is required for common mode noise reduction. The 2 A current rating and 200 mOhm DCR make it suitable for moderate power applications. Consider the toroidal form factor for compact designs requiring efficient magnetic containment without excessive size.

Common Mode Chokes Part Context

This part belongs to the LPTC-V series of toroidal common mode chokes from Signal Transformer. The series provides a range of inductances from 0.51 mH to 25.5 mH. These components are designed for UL94V-0 compliance and are intended for use in environments requiring reliable EMI suppression with low insertion loss.

Common Mode Chokes Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing circuit parameters if considering alternative manufacturers or series.
