LQW2BHNR10G03L

Fixed Inductors Overview

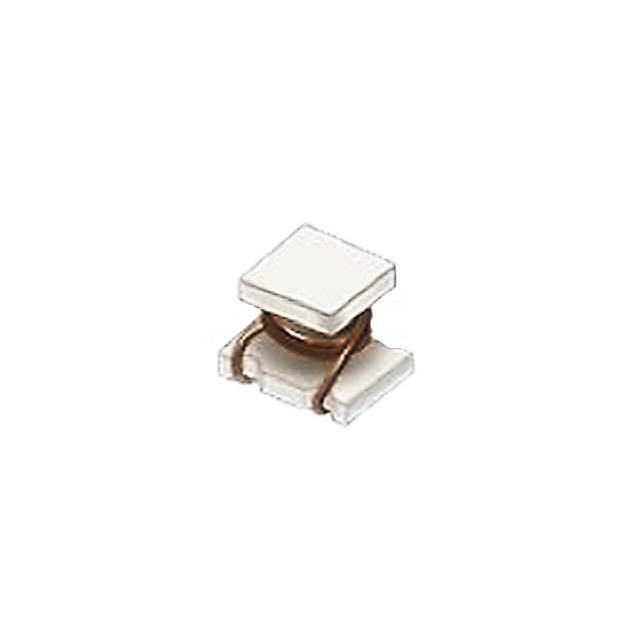

The Murata LQW2BHNR10G03L is an unshielded, wirewound RF inductor from the LQW series. It features a nominal inductance of 100 nH with a ±2% tolerance. The component has a maximum DC resistance of 380 mΩ and supports a rated current of 350 mA. It exhibits a minimum quality factor (Q) of 35 and a self-resonant frequency of 900 MHz. Designed for surface mount applications, it operates within a temperature range of -55°C to +125°C.

Fixed Inductors Feature Summary

• Horizontal wire-wound construction utilizing a drum core design for stable high-frequency performance.
• Unshielded configuration suitable for applications where magnetic interference isolation is not critical.
• RoHS compliant manufacturing ensuring environmental safety standards are met.

Fixed Inductors Applications

• High-frequency RF signal processing circuits
• Impedance matching networks in wireless communication modules
• Filtering components in radio frequency front-ends

Fixed Inductors Procurement Notes

Verify the specific suffix G03L against the official Murata datasheet to confirm the exact inductance value and tolerance. Ensure the procurement channel provides valid traceability documentation. Confirm that the component status aligns with project lifecycle requirements, as availability may vary by region.

Fixed Inductors Selection Notes

Select this component when a compact, unshielded wirewound inductor is required for RF filtering or matching. Consider the 350 mA current rating and 380 mΩ DC resistance for power handling capabilities. Evaluate the 900 MHz self-resonant frequency to ensure it fits the target operating band without parasitic resonance issues.

Fixed Inductors Part Context

This part belongs to the Murata LQW series of chip coil inductors. These devices are designed for horizontal mounting on printed circuit boards. The series offers various inductance values tailored for high-frequency applications, providing a balance between size constraints and electrical performance for modern electronic systems.

Fixed Inductors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Engineers should consult the official Murata replacement guide or contact technical support directly for validated cross-reference data before implementing any alternative components.
