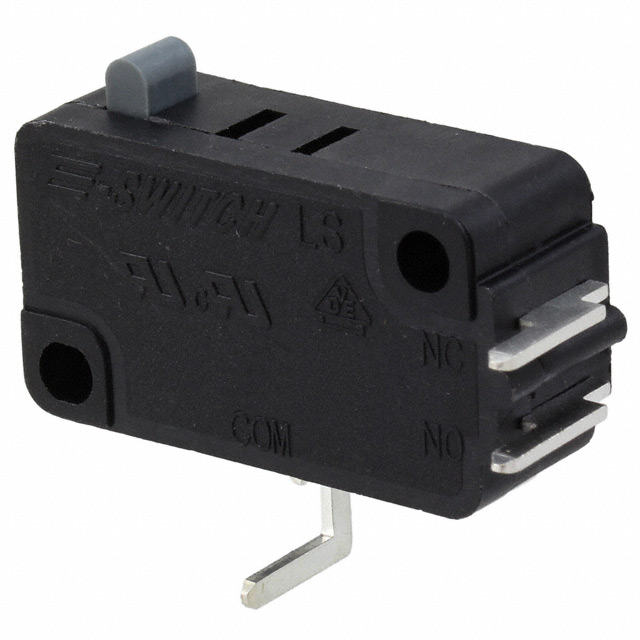

LS0851500F250V2A

LS0851500F250V2A is listed in the Limit Switches range at ChipApex. The manufacturer field lists E-Switch. Its product description is SWITCH SNAP ACTION SPDT 15A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for LS0851500F250V2A

• Description：SWITCH SNAP ACTION SPDT 15A 125V
• Series：LS
• Mfr：E-Switch
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：15A (AC)
• Voltage Rating - AC：125 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Through Hole, Right Angle
• Termination Style：PC Pin
• Ingress Protection：-
• Features：-
• Operating Force：250gf
• Release Force：50gf
• Operating Position：0.579" (14.7mm)
• Pretravel：0.080" (2.0mm)
• Differential Travel：-
• Overtravel：-
• Operating Temperature：-25°C ~ 85°C
• Voltage Rating - DC：-

Limit Switches datasheet and documents for LS0851500F250V2A
