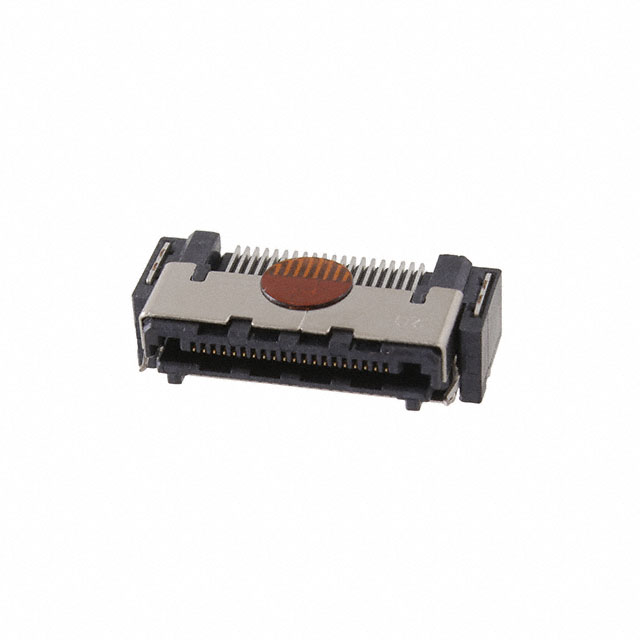

LSHM-120-01-L-RH-A-S-K-TR

LSHM-120-01-L-RH-A-S-K-TR is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN SELF-MATE 40P R/A SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for LSHM-120-01-L-RH-A-S-K-TR

• Description：CONN SELF-MATE 40P R/A SMD GOLD
• Series：Razor Beam™ LSHM
• Mfr：Samtec Inc.
• Package：Tape & Reel (TR),Cut Tape (CT)
• Connector Type：Self Mating, Non-Gendered, Hermaphroditic
• Number of Positions：40
• Pitch：0.020" (0.50mm)
• Number of Rows：2
• Mounting Type：Surface Mount, Right Angle, Reverse
• Features：Board Guide, Pick and Place, Shielded
• Contact Finish：Gold
• Contact Finish Thickness：10.0µin (0.25µm)
• Mated Stacking Heights：-
• Height Above Board：0.202" (5.13mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for LSHM-120-01-L-RH-A-S-K-TR
