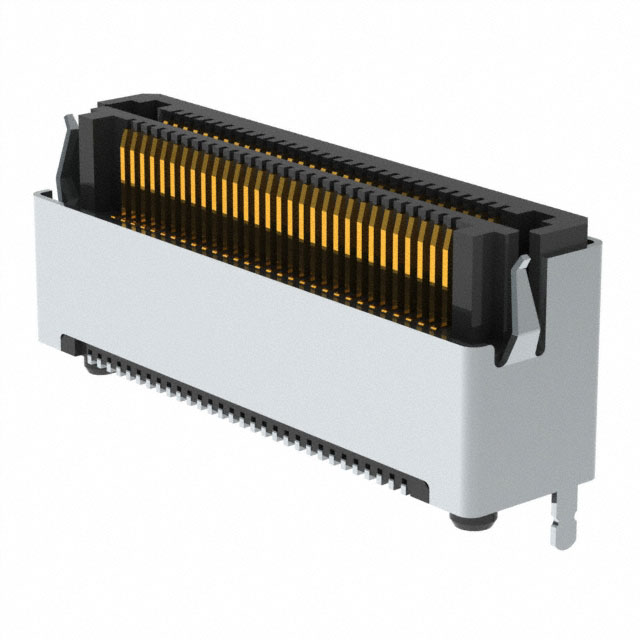

LSHM-130-06.0-F-DV-A-S-TR

LSHM-130-06.0-F-DV-A-S-TR is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN SELF-MATE 60POS SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for LSHM-130-06.0-F-DV-A-S-TR

• Description：CONN SELF-MATE 60POS SMD GOLD
• Series：Razor Beam™ LSHM
• Mfr：Samtec Inc.
• Package：Tape & Reel (TR)
• Connector Type：Self Mating, Non-Gendered, Hermaphroditic
• Number of Positions：60
• Pitch：0.020" (0.50mm)
• Number of Rows：2
• Mounting Type：Surface Mount
• Features：Board Guide, Shielded
• Contact Finish：Gold
• Contact Finish Thickness：3.00µin (0.076µm)
• Mated Stacking Heights：8.5mm, 9mm, 10mm, 12mm
• Height Above Board：0.293" (7.45mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for LSHM-130-06.0-F-DV-A-S-TR
