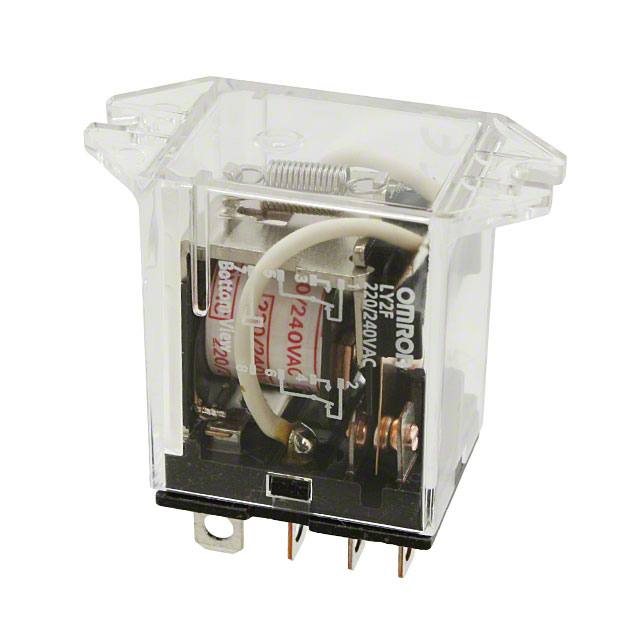

LY2F-AC220/240

LY2F-AC220/240 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Omron Automation and Safety. Its product description is RELAY GEN PURPOSE DPDT 10A 240V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for LY2F-AC220/240

• Description：RELAY GEN PURPOSE DPDT 10A 240V
• Series：LY
• Mfr：Omron Automation and Safety
• Package：Bulk
• Mounting Type：Chassis Mount
• Coil Voltage：240VAC
• Contact Form：DPDT (2 Form C)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：250VAC, 125VDC - Max
• Load - Max Switching：2500VA, 1250W
• Coil Current：4.6 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：Plug In
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：192 VAC
• Must Release Voltage：72 VAC
• Operating Temperature：-25°C ~ 55°C
• Contact Material：Silver Alloy
• Approval Agency：CE, CSA, TUV, UR
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：25 ms
• Release Time：25 ms

Power Relays, Over 2 Amps datasheet and documents for LY2F-AC220/240
