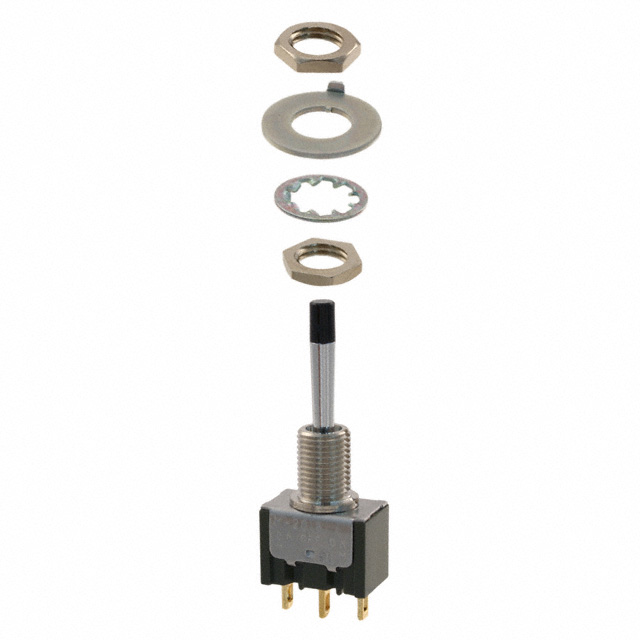

M2018CS1G01-A

M2018CS1G01-A is listed in the Toggle Switches range at ChipApex. The manufacturer field lists NKK Switches. Its product description is SWITCH TOGGLE SPDT 0.4VA 28V. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for M2018CS1G01-A

• Description：SWITCH TOGGLE SPDT 0.4VA 28V
• Series：M
• Mfr：NKK Switches
• Package：Bulk,Box
• Mounting Type：Panel Mount
• Circuit：SPDT
• Switch Function：Mom-Off-Mom
• Current Rating (Amps)：0.4VA (AC/DC)
• Voltage Rating - AC：28 V
• Voltage Rating - DC：28 V
• Actuator Type：Standard Round with Cap
• Actuator Length：14.50mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Solder Lug
• Panel Cutout Dimensions：Circular - 6.50mm Dia
• Bushing Thread：1/4-40
• Ingress Protection：-
• Features：Black Cap
• Operating Temperature：-30°C ~ 85°C

Toggle Switches datasheet and documents for M2018CS1G01-A
