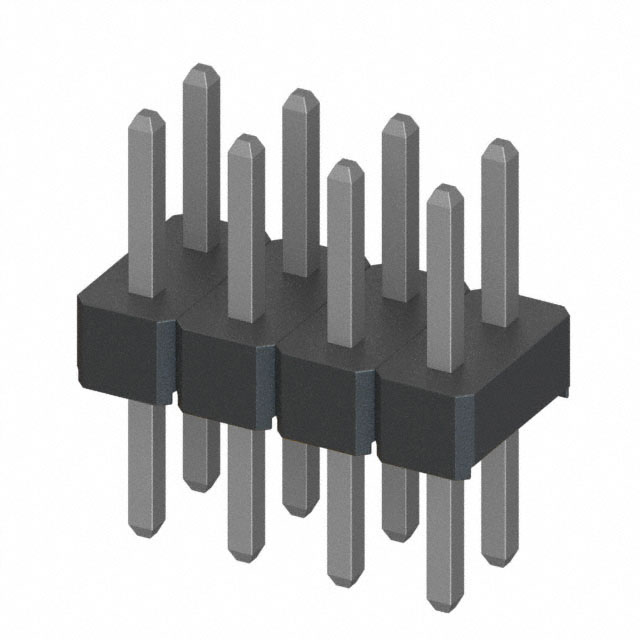

M22-2020446

$0.23

Description：CONN HEADER VERT 8POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk

SKU:b6f15b966cbf Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M22-2020446 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 8POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M22-2020446

Description：CONN HEADER VERT 8POS 2MM
Series：M22
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：8
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.138" (3.50mm)
Contact Length - Post：0.134" (3.40mm)
Overall Contact Length：0.331" (8.40mm)
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：-
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Polyamide (PA6T), Nylon 6T
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M22-2020446

M22-2020446

Headers, Male Pins Overview

The M22-2020446 is a male pin header from the Harwin M22 series, featuring an 8-position configuration in a dual in-line (4+4) arrangement. It utilizes a 2 mm pitch with a 2 mm row spacing and is designed for right-angle surface mounting via solder pins. The contacts are made of phosphor bronze with tin plating, rated for 1 A current and 650 VAC voltage. Operating temperatures range from -40°C to +105°C, supported by UL 94 V-0 flammability ratings.

Headers, Male Pins Feature Summary

Right-angle horizontal design facilitates compact board-to-board connections.
Tin-plated phosphor bronze contacts ensure reliable electrical conductivity.
High-temperature thermoplastic housing withstands standard reflow soldering processes.

Headers, Male Pins Applications

Board-to-board interconnections
Embedded PC systems
Industrial monitoring equipment

Headers, Male Pins Procurement Notes

Verify the specific contact plating finish against official datasheets, as distributor listings may vary between tin and gold options for this part number. Confirm the right-angle orientation matches the mechanical constraints of the target PCB layout. Ensure the 2 mm pitch aligns with mating connector specifications to prevent interface incompatibility during assembly.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle male header is required for dense PCB layouts. The 2 mm pitch offers a balance between signal density and manufacturing ease. Verify that the tin plating meets the environmental and wear requirements of the application, considering that gold-plated variants exist within the same series for higher durability needs.

Headers, Male Pins Part Context

This part belongs to the M22 series, a widely adopted industrial standard connector family known for its robustness and versatility. The series supports both through-hole and surface mount technologies in various configurations. The M22-2020446 specifically addresses applications requiring horizontal male headers with a 2 mm grid, fitting into the broader ecosystem of Harwin's high-reliability interconnect solutions.
