M22-2510146

Headers, Male Pins Overview

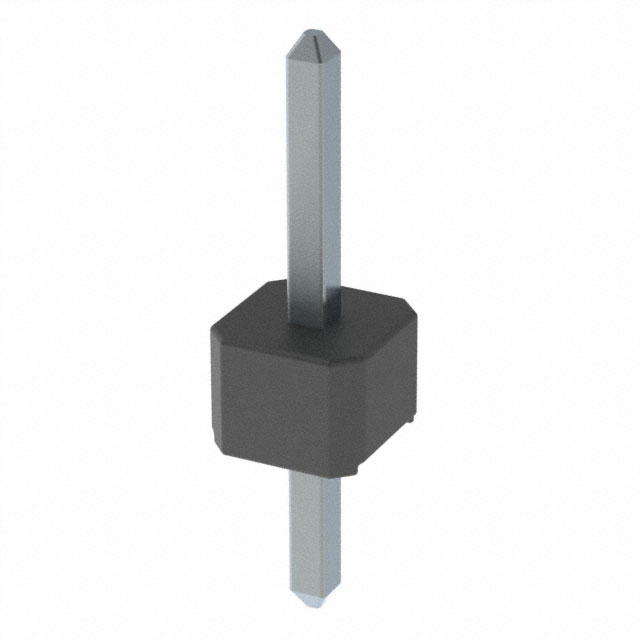

The M22-2510146 is a single-position vertical pin header connector from the Harwin M22 series. It features a 2.00mm pitch and utilizes tin-plated phosphor bronze contacts with a 2.4mm PC tail length. Designed for through-hole mounting, this black PA6T insulator supports a temperature range of -40°C to 105°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Single-row vertical pin header design
• Tin-plated contact surface finish
• Through-hole termination method

Headers, Male Pins Applications

• Board-to-board interconnections
• Cable-to-board connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific pin count and orientation against project requirements before ordering. Confirm that the tin plating specification aligns with soldering processes and environmental conditions. Ensure the through-hole footprint matches the PCB layout dimensions precisely to guarantee mechanical stability and electrical continuity during assembly.

Headers, Male Pins Selection Notes

Select this component when a minimal single-pin vertical connection is required within the M22 series ecosystem. The 2.00mm pitch allows for compact board layouts. Consider the tin plating for cost-effective applications where gold plating is unnecessary. Verify compatibility with mating sockets in the same series to ensure proper engagement and signal integrity.

Headers, Male Pins Part Context

This part belongs to the M22 series, characterized by 2.00mm pitch headers and housings. It serves as a basic building block for modular connector systems. The single-position format offers flexibility for custom harnesses or simple signal routing. It complements other M22 components like multi-position headers and corresponding socket assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes include other single-position vertical headers from the M22 series with identical 2.00mm pitch and tin plating. Cross-reference part numbers such as M22-2510105 if gold plating is acceptable. Ensure any replacement maintains the same 2.4mm PC tail length and through-hole mounting style for mechanical fit.
