M22-2520346

Headers, Male Pins Overview

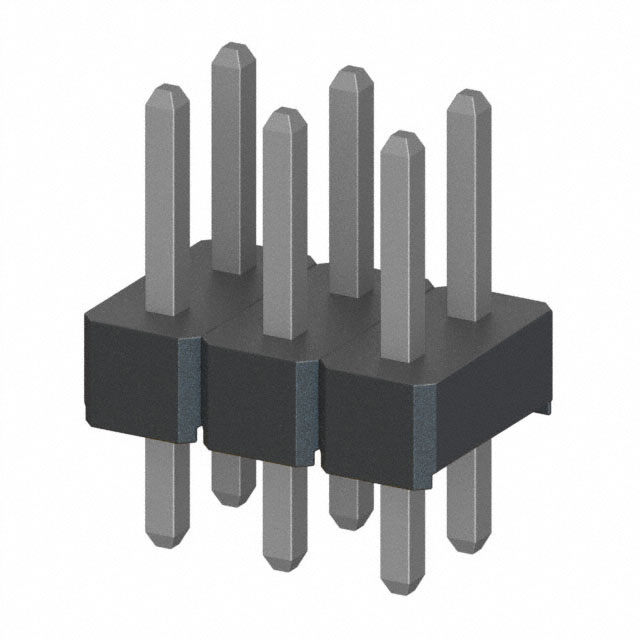

The Harwin M22-2520346 is a vertical pin header from the M22 series, featuring a 2 mm pitch and a 3+3 (6 position) dual in-line configuration. It utilizes tin-plated phosphor bronze contacts housed in black nylon insulation. The component supports a current rating of 1 A and withstands voltages up to 650 VAC. Designed for through-hole soldering, it operates within a temperature range of -40°C to +105°C and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Dual in-line pin header design with 2 mm spacing for compact board integration
• Tin-plated phosphor bronze contacts ensure reliable electrical conductivity
• Vertical orientation facilitates standard through-hole PCB mounting
• Black nylon housing provides thermal stability and UL 94 V-0 compliance

Headers, Male Pins Applications

• General electronic interconnects requiring 6-position vertical headers
• Industrial control modules utilizing 2mm pitch connector systems
• Consumer electronics assemblies with space-constrained vertical routing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm contact plating, housing color, and row configuration. Ensure the selected variant matches the required 2 mm pitch and vertical orientation for your PCB layout. Cross-reference the manufacturer part number with authorized distributors to confirm current availability and lead times prior to finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 6-position vertical header with 2 mm pitch is required. It is suitable for applications needing 1 A current capacity and 650 VAC voltage ratings. Consider the -40°C to +105°C operating range and UL 94 V-0 material rating for environmental compatibility. Verify that the through-hole solder termination method aligns with your assembly process capabilities.

Headers, Male Pins Part Context

This component belongs to the Harwin M22 series, which specializes in 2 mm pitch connectors. The M22 line offers various configurations including single and dual in-line headers with different row counts and orientations. This specific model represents a standard vertical pin header option within that extensive portfolio, designed for reliable signal and power transmission in dense electronic layouts.

Headers, Male Pins Replacement Considerations

Consult the official Harwin documentation for direct cross-references or recommended alternative part numbers within the M22 series. Verify mechanical dimensions and electrical ratings before substituting with other manufacturers' products to ensure PCB footprint compatibility and performance equivalence.
