M22-2530946

Headers, Male Pins Overview

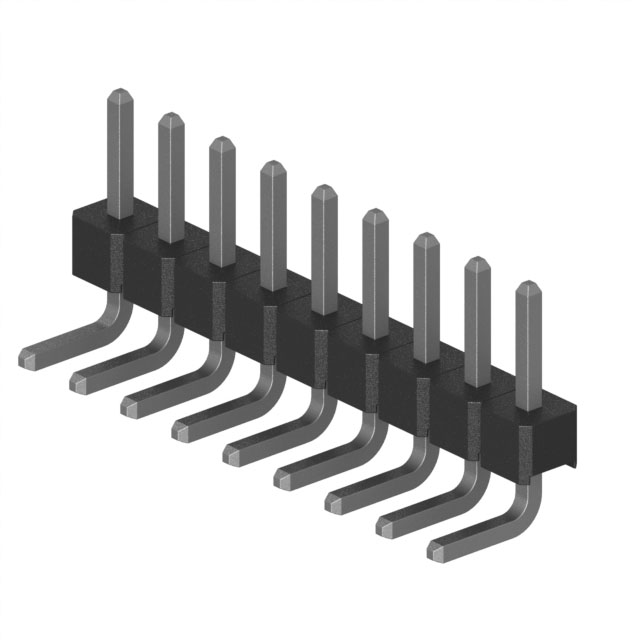

The M22-2530946 is a single-row male pin header from the Harwin M22 series, designed for through-board mounting. It features a 2 mm (0.079 inch) pitch with 9 positions and horizontal orientation. The connector utilizes gold-plated contacts to ensure reliable signal transmission in electronic assemblies.

Headers, Male Pins Feature Summary

• Single row configuration with horizontal pin orientation
• Gold-plated contact surfaces for enhanced conductivity
• Through-board termination style for secure PCB installation

Headers, Male Pins Applications

• General electronic circuit board interconnections
• Signal routing in compact electronic modules
• Board-to-board or cable connections requiring right-angle access

Headers, Male Pins Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official datasheets. Confirm that the specific suffix indicates gold plating rather than tin variants found in similar models. Ensure compatibility with mating connectors of matching pitch and contact count before integration into production workflows.

Headers, Male Pins Selection Notes

Select this model when a single-row, right-angle male header is required for space-constrained designs. The horizontal orientation facilitates low-profile stacking or side-access connections. Verify that the 2 mm pitch aligns with existing footprint requirements and that gold plating meets environmental durability standards for the target application.

Headers, Male Pins Part Context

This component belongs to the M22 series, characterized by a 2 mm pitch and robust construction. It serves as a standard interconnect solution within Harwin's portfolio, offering reliability for various industrial and commercial electronics applications requiring precise alignment and durable connections.

Headers, Male Pins Replacement Considerations

M22-2531146 is a tin-plated variant with different contact counts; verify plating and position requirements. M22-2530946-DG may denote a specific distributor code for the same gold-plated specification.
