M22-2531146

Headers, Male Pins Overview

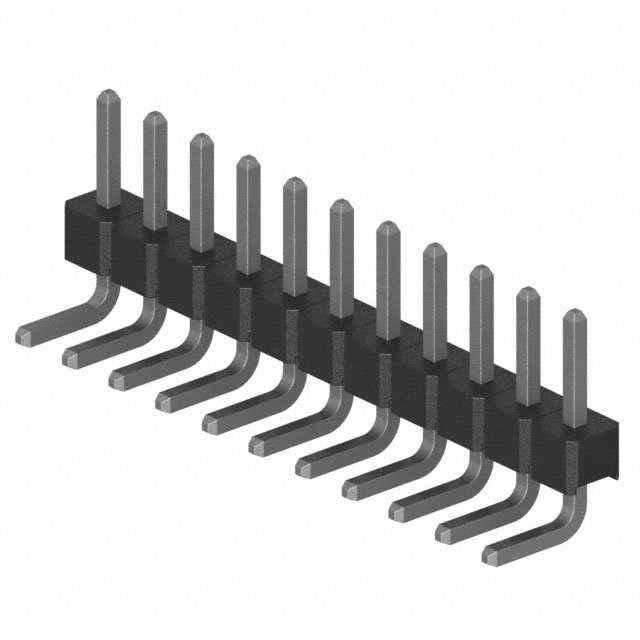

The M22-2531146 is a single-row pin header from the Harwin M22 series, designed for board-to-board interconnections. It features an 11-position configuration with a 2 mm (0.079 in) pitch and horizontal orientation. The connector utilizes male pins with tin plating and supports through-hole soldering termination. This component is classified as obsolete.

Headers, Male Pins Feature Summary

• Cuttable design allows for flexible length selection
• Horizontal mounting orientation for space-constrained layouts
• Tin-plated phosphor bronze contacts ensure reliable conductivity

Headers, Male Pins Applications

• Board-to-board connections
• Industrial control systems
• General electronic equipment

Headers, Male Pins Procurement Notes

This component is officially listed as obsolete by the manufacturer. Availability is restricted to remaining stock or secondary markets. Verify end-of-life status and lead times carefully before finalizing designs. Consider alternative sourcing channels if immediate procurement is required.

Headers, Male Pins Selection Notes

Select this part only if the specific 11-position count and horizontal form factor are mandatory. Due to its obsolete status, verify long-term supply stability. Evaluate compatible mating connectors within the same M22 series to ensure mechanical and electrical compatibility.

Headers, Male Pins Part Context

Part of the M22 series, known for robust performance in harsh environments. Designed for high-reliability applications across industrial, medical, and transportation sectors. Offers versatile configurations including cuttable headers and various contact arrangements.

Headers, Male Pins Replacement Considerations

As an obsolete product, direct substitutes may be limited. Review the M22 series catalog for current equivalents with similar pitch and position counts. Consult Harwin technical support for validated replacement recommendations.
