M22-2531346

Headers, Male Pins Overview

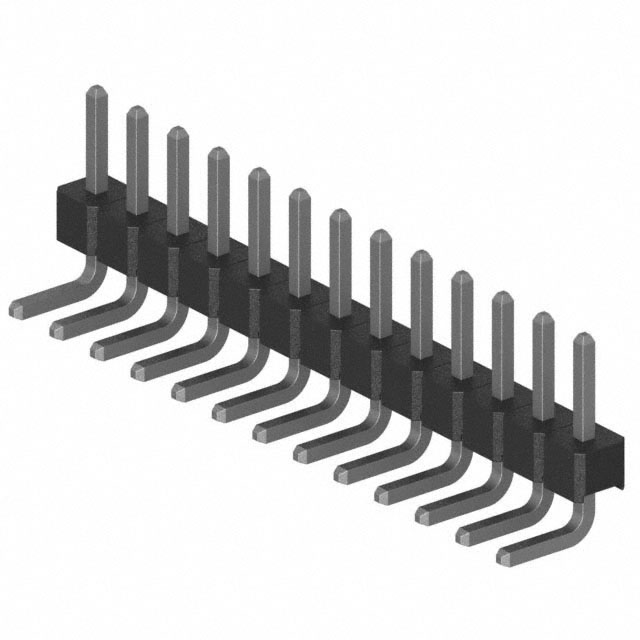

The M22-2531346 is a pin header from the Harwin M22 series, designed for board-to-board connections. It features a single row of 13 positions with a 2 mm pitch. The connector utilizes tin-plated contacts and is configured in a horizontal orientation. This component belongs to the Headers & Wire Housings product category and is identified by manufacturer part number M22-2531346.

Headers, Male Pins Feature Summary

• Single row configuration for compact circuit layouts
• Horizontal mounting orientation for low-profile applications
• Tin-plated contact finish for reliable conductivity

Headers, Male Pins Applications

• General electronic equipment interconnects
• Industrial control system boards
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify current availability status as this component may be subject to obsolescence or limited distribution channels. Confirm RoHS compliance details through official documentation before integration. Ensure mechanical fit within the target assembly constraints due to the specific horizontal form factor.

Headers, Male Pins Selection Notes

Select this part when a single-row, horizontal header with 2 mm spacing is required. Compare against other M22 variants for position count and orientation differences. Validate that the tin plating meets environmental requirements for the intended application environment.

Headers, Male Pins Part Context

This component is part of the broader M22 series of headers manufactured by Harwin. The series offers various configurations including different row counts, pitches, and orientations. The M22-2531346 specifically addresses needs for 13-position horizontal connections within this standardized family.

Headers, Male Pins Replacement Considerations

Check for direct substitutes within the M22 series offering identical 13-position horizontal specifications. Verify compatibility with mating connectors and PCB footprint dimensions before substitution.
