M22-5432105

Headers, Male Pins Overview

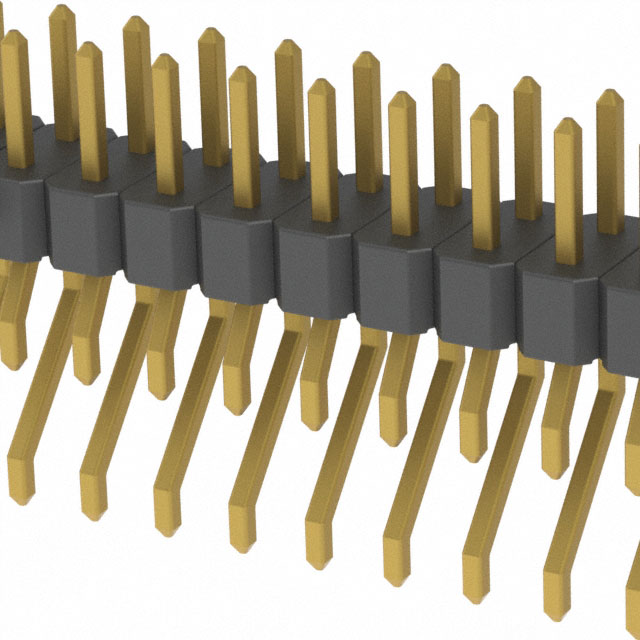

The M22-5432105 is a 2.00mm pitch dual in-line horizontal surface mount pin header assembly from the Harwin M22 series. Designed for board-to-board connectivity, this component features a single row configuration with gold-plated phosphor bronze contacts housed in a nylon insulator. It utilizes a through-hole compatible termination style adapted for SMT processes, ensuring robust mechanical stability and reliable electrical performance in high-density PCB layouts.

Headers, Male Pins Feature Summary

• Horizontal surface mount orientation facilitates compact board stacking
• Gold-plated phosphor bronze contacts ensure durable electrical conductivity
• Nylon housing provides structural integrity and thermal resistance

Headers, Male Pins Applications

• High-density board-to-board interconnects
• Compact electronic module integration
• Industrial control system circuit boards

Headers, Male Pins Procurement Notes

Verify the specific contact count and packaging quantity against the official datasheet before ordering. Confirm that the horizontal SMT form factor aligns with your assembly equipment capabilities. Ensure compatibility with standard reflow soldering profiles to maintain connection integrity during manufacturing.

Headers, Male Pins Selection Notes

Select this component when space constraints require a low-profile horizontal connector. The 2.00mm pitch offers a balance between signal density and spacing reliability. Consider the nylon material properties for environmental resistance and verify that the surface mount footprint matches your PCB design guidelines.

Headers, Male Pins Part Context

This part belongs to the M22 series, known for fine pitch industrial connectors. The series supports various configurations including vertical and right-angle options. The M22-5432105 specifically addresses needs for horizontal mounting where vertical clearance is limited, providing a standardized solution within the broader M22 ecosystem.

Headers, Male Pins Replacement Considerations

Consult official Harwin documentation for direct cross-references. Verify that any substitute maintains the 2.00mm pitch and horizontal SMT orientation. Ensure electrical ratings and mechanical dimensions are identical to prevent assembly issues.
