M22-6340542

Headers, Receptacles, Female Sockets Overview

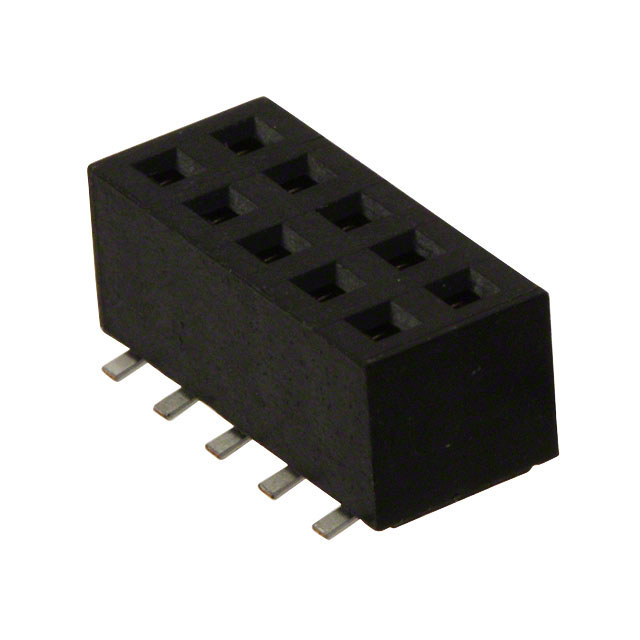

The M22-6340542 is a 10-position, 2-row female board-to-board PCB receptacle from the Harwin M22 series. It features a 2mm contact pitch and surface mount termination. The connector utilizes gold-plated phosphor bronze contacts for reliable signal transmission and tin-over-nickel plated tails for soldering. Rated for 500VAC voltage and 2A current, it operates within a temperature range of -40°C to +105°C.

Headers, Receptacles, Female Sockets Feature Summary

• Gold-plated phosphor bronze contacts ensure durable electrical performance
• Surface mount design supports automated assembly processes
• High-temperature resistant housing material withstands reflow soldering

Headers, Receptacles, Female Sockets Applications

• Industrial control systems
• Telecommunications equipment
• General purpose electronic assemblies

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm pin count, row configuration, and termination type. Ensure the selected variant matches the required surface mount footprint and current rating specifications for the target application circuit.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for applications requiring high-density board-to-board connections with robust contact materials. The 2mm pitch offers a balance between signal density and spacing reliability. Confirm compatibility with mating header pins regarding height and alignment tolerances.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the M22 series, designed for compact industrial and telecommunications environments. The series emphasizes high reliability through gold-plated contacts and UL94V-0 rated housings, suitable for demanding operational conditions.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
