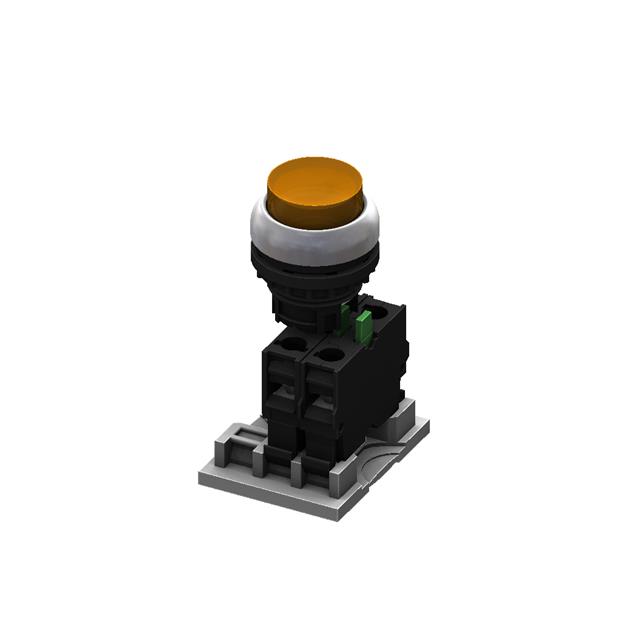

M22XP-MSB01-E30-Y

M22XP-MSB01-E30-Y is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is EXT PB-MOM-1B-LED-YELLOW. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for M22XP-MSB01-E30-Y

• Description：EXT PB-MOM-1B-LED-YELLOW
• Series：M22
• Mfr：Moujen
• Package：Bulk
• Mounting Type：Panel Mount, Front
• Type：Standard, Illuminated
• Circuit：SPST
• Current Rating (Amps)：6A (AC), 3A (DC)
• Actuator Type：Round, Button
• Actuator Marking：No Marking
• Color - Actuator/Cap：Yellow
• Illumination Type, Color：LED, Yellow
• Illumination Voltage (Nominal)：12 ~ 30 VAC/DC
• Termination Style：Screw Terminal
• Ingress Protection：IP65 - Dust Tight, Water Resistant
• Panel Cutout Dimensions：Circular - 22.30mm Dia
• Operating Temperature：-25°C ~ 70°C
• Voltage Rating - DC：24 V
• Voltage Rating - AC：230 V

Pushbutton Switches datasheet and documents for M22XP-MSB01-E30-Y
