M50-3001245

Headers, Receptacles, Female Sockets Overview

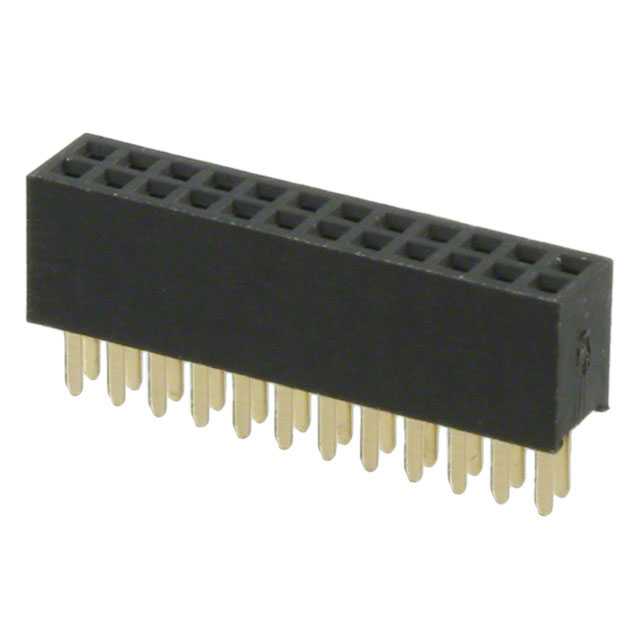

The Harwin M50-3001245 is a dual-in-line (DIL) socket assembly belonging to the Archer M50 series. It features a 24-position configuration arranged in two rows of twelve contacts each. The connector utilizes a 1.27 mm (0.05 inch) pin spacing and operates with vertical straight orientation. Designed for through-hole mounting, it employs gold-plated contacts on a bronze alloy base. The unit functions as a receptacle within a board-to-board or wire-to-board system, rated for 1 kV dielectric voltage.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row DIL architecture providing compact high-density connectivity
• Gold-plated contact surfaces ensuring reliable signal transmission
• Vertical straight orientation facilitating standard PCB integration

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnection systems
• Wire-to-board connection assemblies
• High-density electronic circuit modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number against official Harwin documentation to confirm active status and RoHS compliance. Ensure that the through-hole termination type matches the target PCB fabrication capabilities. Cross-reference the 1.27 mm pitch requirements with mating header specifications to guarantee mechanical compatibility and proper electrical engagement during assembly.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 24-position vertical receptacle is required for dense circuit layouts. The 1.27 mm pitch allows for significant I/O density within constrained board areas. The gold plating supports repeated mating cycles or corrosive environments. Confirm that the 1 kV rating meets the insulation requirements of the specific application circuitry before finalizing the design.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Archer M50 series, which provides a range of connectors with 1.27 mm spacing. The series includes various configurations for headers, sockets, and shrouded options. The M50-3001245 specifically addresses the need for unshrouded, dual-row through-hole receptacles in space-constrained industrial and commercial electronics applications.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes within the same family include M50-3002445 and M50-3001242. Verify that alternative part numbers maintain identical 1.27 mm pitch, 24-position count, and through-hole termination characteristics to ensure direct interchangeability without redesigning the host printed circuit board.

Headers, Receptacles, Female Sockets FAQ

What is the contact material used in this connector?

The contacts are manufactured from bronze alloy and feature gold plating.

Is this connector suitable for wire-to-board applications?

Yes, the M50 series is designed for both board-to-board and wire-to-board connections.
