M50-3201845

Headers, Receptacles, Female Sockets Overview

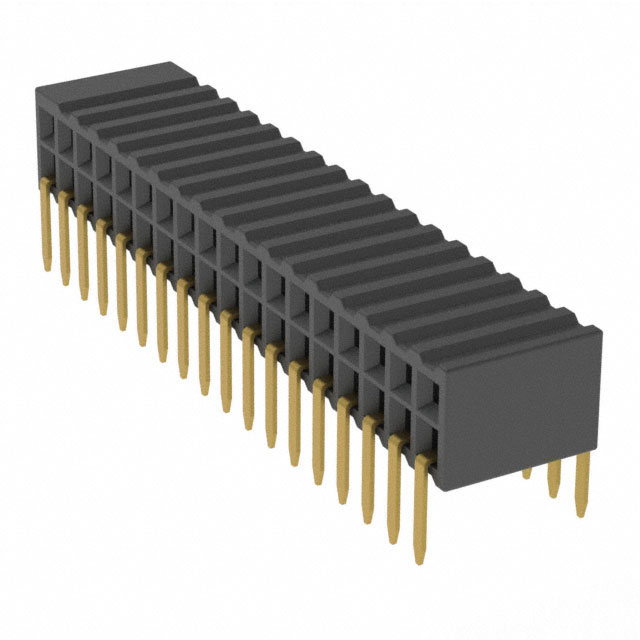

The Harwin M50-3201845 is a 36-position dual in-line (DIL) socket connector from the Archer M50 series. It features a 1.27 mm pitch and utilizes through-hole right-angle termination for PCB mounting. The contacts are gold-plated phosphor bronze, designed for reliable signal transmission. The housing is constructed from black liquid crystal polymer (LCP), offering UL 94 V-0 flammability ratings. This component supports a maximum operating temperature of 105°C and a minimum of -40°C, ensuring stability across standard industrial environments.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle through-hole termination facilitates compact board layout integration.
• Gold-plated phosphor bronze contacts ensure durable electrical connectivity.
• Liquid crystal polymer housing provides high thermal resistance and UL 94 V-0 compliance.

Headers, Receptacles, Female Sockets Applications

• General-purpose electronic assemblies requiring DIL interconnects
• Industrial control systems utilizing 1.27mm pitch ribbon cables
• Consumer electronics with space-constrained vertical mounting needs

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix against the official Harwin datasheet to confirm orientation and contact plating specifications. Ensure compatibility with 1.27 mm pitch ribbon cable assemblies. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm current availability and lead times prior to procurement planning.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when right-angle through-hole mounting is required for 36-position connections. Compare against vertical variants if panel mounting or different cable exit directions are needed. Verify that the 1A current rating and 1.27 mm pitch align with the system's electrical and spatial constraints before finalizing the design.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Harwin Archer M50 series, which specializes in fine-pitch IDC and header solutions. The series is engineered for applications demanding reliable connections using 0.635 mm pitch ribbon cables without specialized tooling. The M50-3201845 specifically addresses the need for angled termination within this ecosystem.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 1.27 mm pitch, 36-position count, right-angle orientation, and through-hole termination style.
