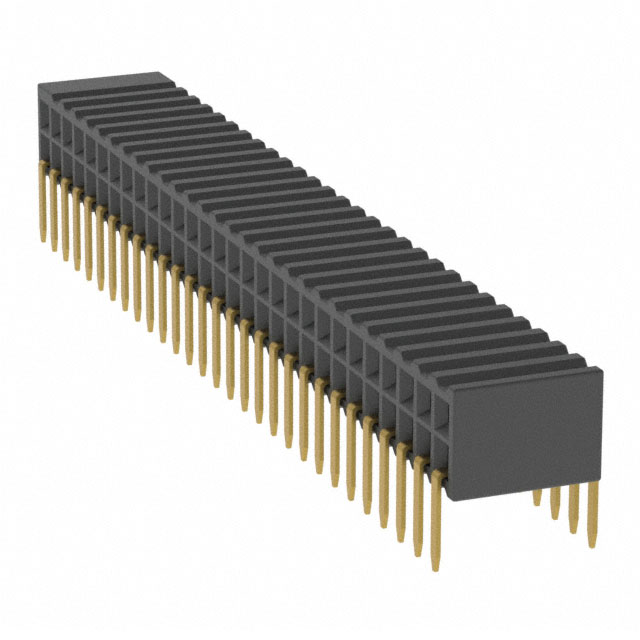

M50-3202945

Description：CONN RCPT 58P 0.05 GOLD PCB R/A
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:98b05576ddbf Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3202945 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN RCPT 58P 0.05 GOLD PCB R/A. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for M50-3202945

Description：CONN RCPT 58P 0.05 GOLD PCB R/A
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：58
Number of Positions Loaded：All
Pitch - Mating：0.050" (1.27mm)
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Insulation Color：Black
Insulation Height：0.136" (3.46mm)
Contact Length - Post：0.094" (2.40mm)
Operating Temperature：-40°C ~ 105°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Gold
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：1A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for M50-3202945

M50-3202945

Headers, Receptacles, Female Sockets Overview

The Harwin M50-3202945 is a double-row IDC socket assembly from the Archer M50 series. It features 58 positions (29+29) with a 1.27 mm pitch. The connector utilizes phosphor bronze contacts with gold plating and a PBT housing. Rated for 1 A current, it operates between -40°C and +105°C. Designed for cable installation, it offers an angled termination style without a cover.

Headers, Receptacles, Female Sockets Feature Summary

Double-row configuration for high-density signal routing
Angled termination design for optimized board space utilization
Gold-plated phosphor bronze contacts ensure reliable conductivity

Headers, Receptacles, Female Sockets Applications

Cable-to-board interconnections
High-density data transmission systems
Industrial control panel wiring

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix against official Harwin documentation to confirm orientation and contact count. Ensure compatibility with mating header assemblies within the same M50 series family. Confirm RoHS compliance status through the manufacturer's latest certification records before final procurement approval.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when angled cable entry is required for 29-pin circuits. The 1.27 mm pitch suits compact layouts. Verify that the mating environment supports the specified temperature range and current rating. Ensure PCB layout accommodates the angled profile dimensions.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Harwin Archer M50 series, known for robust performance in demanding environments. The series provides various configurations including straight and angled options. This specific model addresses applications requiring reliable signal integrity in space-constrained industrial or commercial electronics.
