M50-3500542

$1.22

Description：CONN HEADER VERT 10POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Bulk

SKU:0f89049775f9 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-3500542 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 10POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-3500542

Description：CONN HEADER VERT 10POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：10
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.118" (3.00mm)
Contact Length - Post：0.091" (2.30mm)
Overall Contact Length：0.248" (6.30mm)
Insulation Height：0.039" (1.00mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：3.00µin (0.076µm)
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-3500542

M50-3500542

Headers, Male Pins Overview

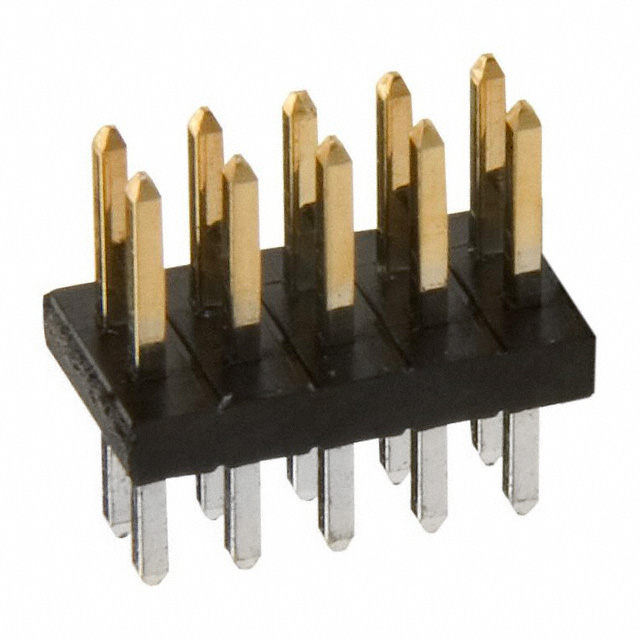

The Harwin M50-3500542 is a 10-position, double-row male pin header from the Archer M50 series. It features a 1.27 mm pitch and is designed for vertical through-hole mounting. The connector utilizes gold-plated copper alloy contacts rated for 1 A current. The housing is constructed from nylon. Key dimensions include a 2.3 mm tail pin length and a 3 mm mating pin height. Operating temperature ranges from -40°C to 105°C.

Headers, Male Pins Feature Summary

Provides reliable board-to-board or wire-to-board interconnection via double-row male pin configuration.
Ensures secure mechanical attachment using vertical through-hole solder termination with specified tail pin length.
Supports high-reliability signal transmission through gold-plated copper alloy contacts.

Headers, Male Pins Applications

Board-to-board interconnections in compact electronic assemblies
Wire-to-board connections utilizing cable sockets
Jumper socket applications requiring standard 1.27 mm spacing

Headers, Male Pins Procurement Notes

Verify that the specific part number M50-3500542 matches the required 10-position, double-row, straight through-hole configuration. Confirm that the 1.27 mm pitch and 3 mm mating pin height are compatible with the target PCB layout and mating components. Ensure environmental ratings meet operational requirements.

Headers, Male Pins Selection Notes

Select this component when a vertical, unshrouded, double-row male header is required for 1.27 mm pitch applications. Consider the 1 A current rating and nylon housing material for suitability. Verify compatibility with mating sockets regarding the 3 mm pin height requirement before integration into the design.

Headers, Male Pins Part Context

This component belongs to the Harwin Archer M50 series, which offers various mating heights and styles including single and double in-line configurations. The series provides industry-standard connectors for dense electronic packaging needs.
