M50-3500842

Headers, Male Pins Overview

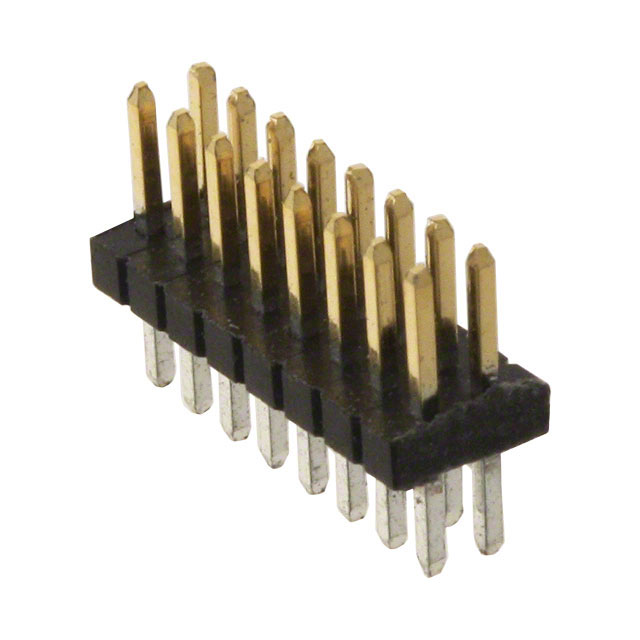

The M50-3500842 is a vertical pin header connector from the Harwin Archer M50 series, designed for through-hole board-to-board connections. It features a 16-position configuration arranged in a dual in-line (DIL) format with a 1.27mm pitch. The component utilizes male pins with gold and tin plating to ensure reliable signal transmission and corrosion resistance. Constructed for standard printed circuit board applications, it offers a compact profile suitable for high-density electronic assemblies requiring robust mechanical stability and consistent electrical performance.

Headers, Male Pins Feature Summary

• Vertical orientation design for efficient space utilization on printed circuit boards
• Dual in-line layout providing standardized spacing for mating sockets
• Gold and tin plated contacts ensuring durable connection integrity

Headers, Male Pins Applications

• High-density electronic assembly interconnects
• Board-to-board signal routing in consumer electronics
• Industrial control module interface connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official Harwin datasheet to confirm contact plating specifications and material compliance. Ensure that the selected variant matches the required through-hole mounting style and pin count for the target PCB footprint. Cross-reference environmental declarations such as RoHS and REACH status with current manufacturer documentation to guarantee regulatory adherence for the intended market application.

Headers, Male Pins Selection Notes

Select this component when a vertical, 16-position header with 1.27mm pitch is required for through-hole implementation. Consider the Archer M50 series for applications demanding high reliability and compact form factors. Evaluate the mechanical retention of the through-hole pins against vibration requirements. Confirm compatibility with mating socket connectors within the same series to maintain consistent pitch and alignment standards across the assembly.

Headers, Male Pins Part Context

This part belongs to the Harwin Archer M50 range, a widely utilized family of connectors known for their precision engineering and versatility. The M50 series supports various configurations including straight, right-angle, and surface mount options. This specific model represents the vertical through-hole variant, catering to designs where board thickness and component height constraints favor a direct vertical insertion method for stable interconnection.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 16-position count, 1.27mm pitch, and vertical through-hole mounting style. Verify that alternative headers offer compatible contact plating and housing materials to ensure equivalent electrical and mechanical performance. Check for identical footprint dimensions to avoid PCB redesign efforts when swapping components.
