M50-3530842

Headers, Male Pins Overview

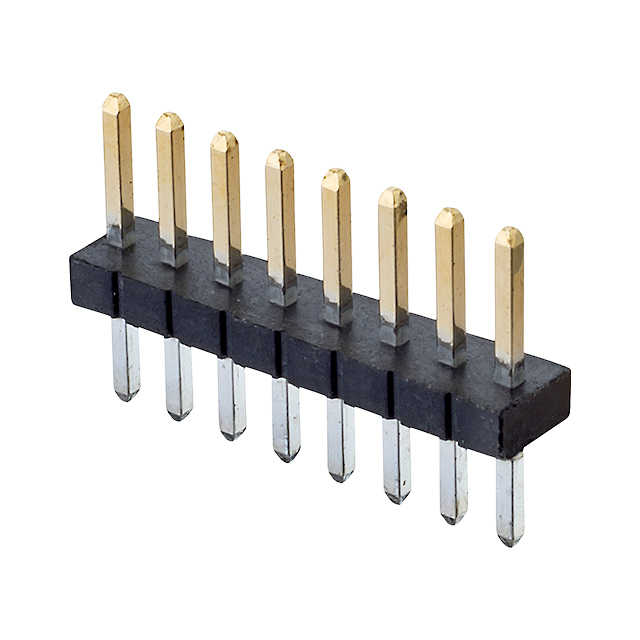

The Harwin M50-3530842 is a single-row pin header connector from the Archer M50 series, designed for board-to-board and board-to-wire applications. It features 8 positions with a 1.27 mm (0.050 inch) pitch. The connector utilizes vertical through-hole termination for secure PCB mounting. Contacts are made of copper alloy with gold plating to ensure reliable signal transmission. The housing is constructed from nylon, providing mechanical stability and electrical insulation.

Headers, Male Pins Feature Summary

• Single-row configuration with vertical orientation for compact board integration
• Gold-plated contacts on copper alloy substrate for enhanced conductivity
• Through-hole solder termination method for robust mechanical fixation

Headers, Male Pins Applications

• Board-to-board interconnections in electronic assemblies
• Board-to-wire connections requiring fixed positioning
• General-purpose signal routing in consumer electronics

Headers, Male Pins Procurement Notes

Verify the specific part number M50-3530842 against official Harwin documentation to confirm single-row, 8-position specifications. Ensure compatibility with mating sockets of matching 1.27 mm pitch. Confirm that the vertical through-hole form factor aligns with the target PCB layout and assembly requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row connection is required for 8 signals. The 1.27 mm pitch allows for dense circuit board layouts. Consider the vertical orientation for standard surface mounting processes. Verify that the current rating and voltage withstand capabilities meet the system design constraints for the intended application environment.

Headers, Male Pins Part Context

This component belongs to the Harwin Archer M50 series, which offers a range of high-density connectors. The series supports various row counts, pitches, and termination styles. The M50-3530842 specifically addresses needs for small-scale, reliable interconnects using standard through-hole technology within the broader portfolio of board-level solutions.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 1.27 mm pitch, single-row, 8-position, and vertical through-hole characteristics. Cross-reference with other manufacturers offering equivalent Archer-style headers. Ensure material compatibility and contact plating specifications align to maintain performance integrity.
