M50-3600942

Headers, Male Pins Overview

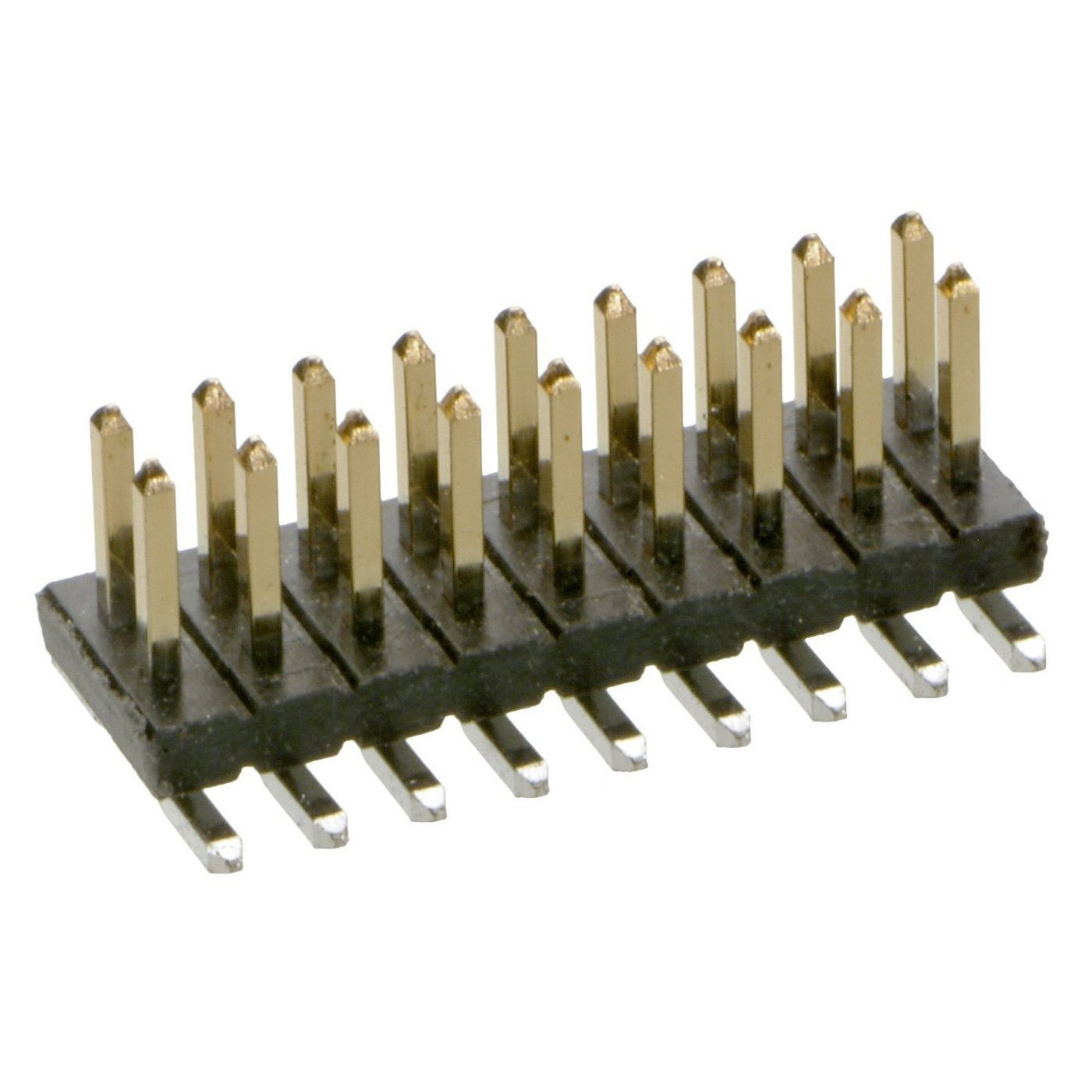

The M50-3600942 is a surface-mount header connector from the Harwin Archer M50 series. It features a 1.27mm (0.050 inch) pin spacing and a dual-in-line configuration with 22 positions arranged in two rows. The connector utilizes square male pins made of brass, plated with gold on the mating interface and tin on the termination side. Designed for board-to-board or wire-to-board applications, it supports a rated current of 1A and a voltage of 250V. The housing is constructed from black thermoplastic material rated UL94 V-0, ensuring flame resistance. Operating temperatures range from -55°C to 105°C.

Headers, Male Pins Feature Summary

• Surface-mount design compatible with automated pick-and-place assembly processes
• Push-pull locking mechanism ensures secure connection retention
• Gold-plated square contacts provide reliable signal transmission
• UL94 V-0 rated thermoplastic insulation for enhanced fire safety

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic assemblies
• Wire-to-board connections requiring high-density routing
• Industrial control modules demanding robust thermal stability
• Consumer electronics utilizing space-constrained PCB layouts

Headers, Male Pins Procurement Notes

Verify the specific contact count and row configuration against the official datasheet before procurement. Confirm that the surface-mount footprint matches the target PCB layout dimensions. Ensure compatibility with standard reflow soldering profiles for SMD components. Check for any specific handling requirements related to the push-pull locking feature during assembly.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-density header is required for SMD applications. The 1.27mm pitch allows for significant I/O density within limited board areas. Consider the 1A current rating for power distribution needs. The dual-row format facilitates efficient routing in multi-layer boards where vertical space is constrained.

Headers, Male Pins Part Context

This part belongs to the Archer M50 family, known for fine pitch connectivity solutions. The series offers various mating heights and configurations to suit diverse design constraints. The M50-3600942 specifically addresses the need for reliable, space-efficient connections in modern electronic devices requiring durable surface-mount interfaces.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available.
