M50-3611542

Headers, Male Pins Overview

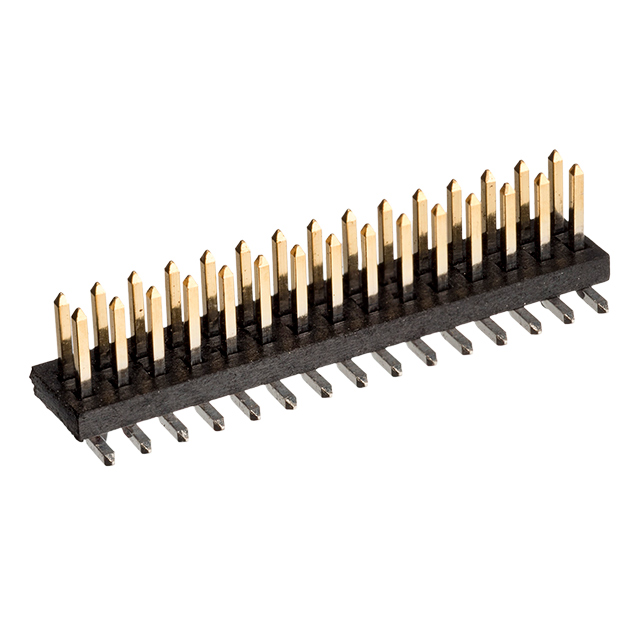

The Harwin M50-3611542 is a male pin header from the Archer M50 series, designed for board-to-board or cable connections. It features an unshrouded style with a row spacing of 0.050 inches (1.27mm). The component has a voltage rating of 250V and a current rating of 1A. Termination is achieved via soldering, suitable for surface mount applications. It operates within a temperature range of -55°C to 105°C and utilizes black insulation with a UL94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Unshrouded double in-line design for versatile board-to-board or cable integration
• Solder termination method ensuring secure electrical connection
• High thermal stability across extended operating temperatures

Headers, Male Pins Applications

• Board-to-board interconnects
• Cable-to-board assemblies
• General electronic circuitry requiring 1.27mm pitch headers

Headers, Male Pins Procurement Notes

Verify the specific contact count and termination type against official datasheets before procurement, as suffix variations may alter physical dimensions or pin configuration. Confirm availability status, as this part number may be marked obsolete in certain distributor catalogs. Ensure compatibility with mating sockets regarding shrouding and pitch specifications to prevent mechanical mismatch during assembly.

Headers, Male Pins Selection Notes

Select this component when a 1.27mm pitch male header is required for surface mount implementation. Consider the unshrouded design implications for neighboring components on the PCB layout. Verify that the 1A current rating and 250V voltage limits meet the circuit requirements. Check for necessary location pegs if alignment precision is critical for the assembly process.

Headers, Male Pins Part Context

This connector belongs to the Archer M50 series by Harwin Inc., which specializes in high-density interconnect solutions. The series offers various configurations including single and double rows with different termination styles. This specific model represents a standard male pin strip variant within that ecosystem, focusing on reliable signal transmission in compact spaces.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 1.27mm pitch male headers from manufacturers such as Samtec or Molex, provided they match the row count, termination style, and current ratings. Cross-reference pin counts and housing dimensions to ensure mechanical fit. Verify that alternative parts maintain similar thermal and electrical performance characteristics.
