M50-3650742R

Headers, Male Pins Overview

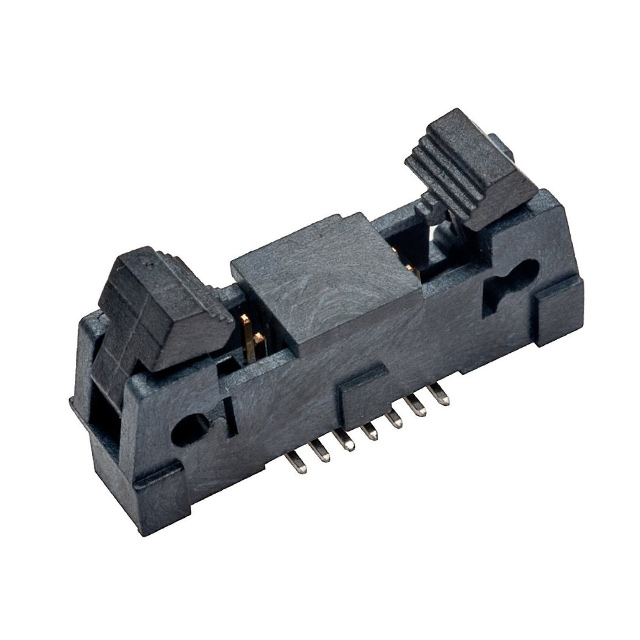

The M50-3650742R is a 1.27 mm pitch dual in-line surface mount header from the Harwin ARCHER M50 series. It features 14 positions arranged in two rows with male pin contacts. The connector utilizes an ejector mechanism for secure mating and demating. Contacts are gold-plated phosphor bronze, rated for 1 A current. The housing is black thermoplastic with UL 94 V-0 flammability rating. Operating temperature ranges from -40°C to +105°C. Insulation resistance is 1 GOhm. Package options include reel and cut tape.

Headers, Male Pins Feature Summary

• Integrated ejector system ensures reliable connection retention during operation
• Gold-plated male pins provide durable electrical contact surfaces
• Surface mount design facilitates automated PCB assembly processes

Headers, Male Pins Applications

• Wire-to-board interconnections in compact electronic assemblies
• High-density signal routing on multi-layer printed circuit boards
• Industrial control modules requiring robust mechanical retention

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized Harwin distributors or certified partners. Confirm RoHS compliance status and specific lot traceability requirements before procurement. Ensure storage conditions maintain thermal stability within specified limits. Cross-reference datasheet revisions to confirm compatibility with existing design specifications. Validate packaging integrity upon receipt to prevent contact contamination.

Headers, Male Pins Selection Notes

Select this component when high-density 1.27 mm spacing is required alongside mechanical retention features. The ejector mechanism distinguishes it from standard headers in constrained spaces. Verify that board layout accommodates the SMT footprint and row spacing. Consider current rating constraints relative to total pin count usage. Ensure mating connector compatibility with the specified pin length and pitch dimensions.

Headers, Male Pins Part Context

This part belongs to the ARCHER M50 series, designed for space-constrained applications. The series emphasizes reliability through its ejector locking feature. It complements other Harwin connectors by offering a balance of density and mechanical security. The product line targets industries requiring consistent performance under vibration and thermal cycling conditions.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific configuration. Alternative selection requires matching 1.27 mm pitch, 14-position DIL format, and ejector functionality. Verify dimensional compatibility and electrical ratings before substituting with generic equivalents.
