M50-3651342R

Headers, Male Pins Overview

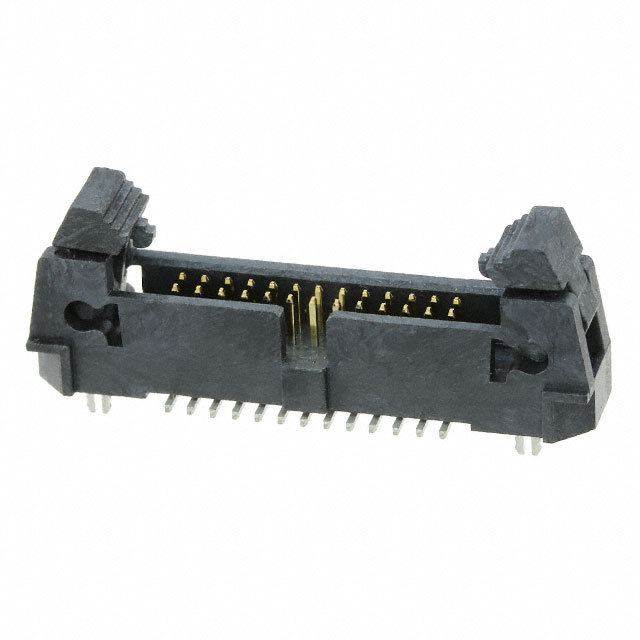

The M50-3651342R is a 26-position, two-row pin header from the Harwin Archer M50 series. It features a 1.27 mm pitch and is designed for surface mount installation. The connector utilizes brass contacts with gold plating and a thermoplastic housing. Rated for 1 A current and operating between -40°C and +105°C, it includes an ejector mechanism for secure mating.

Headers, Male Pins Feature Summary

• Integrated ejector mechanism for reliable connector retention
• Surface mount design for automated PCB assembly
• Gold-plated brass contacts for corrosion resistance

Headers, Male Pins Applications

• Wire-to-board interconnections
• Industrial control systems
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix 'R' indicates reel packaging requirements. Confirm RoHS compliance status through official documentation. Ensure surface mount footprint compatibility with PCB design specifications before procurement.

Headers, Male Pins Selection Notes

Select this component for applications requiring high-density connections with secure retention. The 1.27 mm pitch suits compact designs. Verify that the 1 A current rating meets circuit requirements. Consider the ejector feature for maintenance-heavy environments.

Headers, Male Pins Part Context

Part of the Archer M50 series, known for robust performance in demanding environments. The M50-365 variant specifically addresses vertical wire-to-board needs. This model integrates mechanical retention features not found in standard headers.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available.
