M50-4300345

Headers, Receptacles, Female Sockets Overview

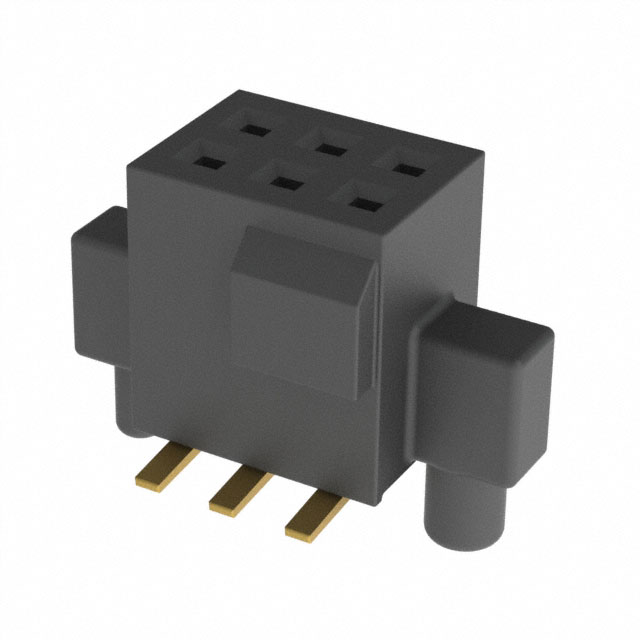

The Harwin M50-4300345 is a surface-mount board-to-board receptacle from the Archer M50 series. It features a dual-row configuration with 6 positions and a 1.27 mm pitch. The connector utilizes gold-plated phosphor bronze contacts for reliable signal transmission. Designed for vertical installation, it offers a profile height of 4.60 mm. The housing is constructed from black thermoplastic material compliant with UL 94 V-0 flammability standards.

Headers, Receptacles, Female Sockets Feature Summary

• Vertical surface-mount architecture for compact PCB integration
• Gold-plated contacts ensure stable electrical connectivity
• Dual-row design maximizes I/O density within limited space

Headers, Receptacles, Female Sockets Applications

• High-density electronic module interconnections
• Industrial control system backplanes
• Telecommunications equipment signal routing

Headers, Receptacles, Female Sockets Procurement Notes

Verify component authenticity through authorized Harwin distributors or certified agents. Confirm RoHS compliance status and specific packaging configurations prior to order placement. Ensure storage conditions meet moisture sensitivity level requirements to maintain solderability and mechanical integrity during assembly processes.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when vertical stacking and high pin density are required in constrained spaces. The 1.27 mm pitch supports fine-pitch applications while maintaining robust mechanical stability. Verify mating partner compatibility within the same M50 series family to ensure proper alignment and contact engagement.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Archer M50 series, characterized by high-reliability board-to-board connections. The series supports various row counts and termination styles, catering to diverse industrial and commercial electronics needs. The M50-4300345 specifically addresses applications requiring vertical SMT mounting with dual-row capability.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other M50 series receptacles with matching 1.27 mm pitch and dual-row configurations. Verify identical pin count and housing dimensions before substitution. Cross-reference datasheets to confirm equivalent electrical ratings and mechanical tolerances.
