M50-4300945

Headers, Receptacles, Female Sockets Overview

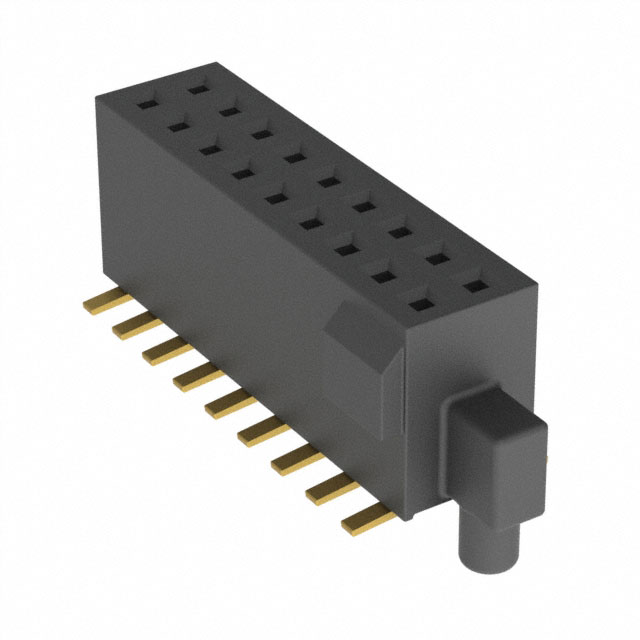

The Harwin M50-4300945 is a rectangular connector belonging to the Archer M50 series. It functions as a socket assembly with 18 positions arranged in a dual inline configuration. The component utilizes a 1.27 mm pitch and features gold-plated contacts for reliable signal transmission. Designed for surface mount technology (SMT), it offers a low-profile mechanical profile suitable for dense board layouts. The unit operates within a standard temperature range and meets RoHS compliance standards for environmental safety.

Headers, Receptacles, Female Sockets Feature Summary

• Dual row socket assembly design
• Gold-plated contact finish
• Surface mount installation style

Headers, Receptacles, Female Sockets Applications

• High-density electronic assemblies
• Board-to-board interconnections
• Compact consumer electronics devices

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific pin count and row configuration against the official datasheet before integration. Confirm that the surface mount footprint matches the target PCB layout dimensions. Ensure compatibility with standard reflow soldering profiles to maintain connection integrity during manufacturing processes.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when a compact, dual-row receptacle is required for space-constrained applications. The 1.27 mm pitch allows for high I/O density compared to larger spacing options. Consider the SMT mounting requirement and ensure adequate clearance around the connector area on the printed circuit board.

Headers, Receptacles, Female Sockets Part Context

This component is part of the Archer M50 family, which specializes in high-reliability interconnect solutions. The series provides various configurations including headers and sockets with consistent 1.27 mm spacing. This specific variant serves as a mating partner for corresponding male header components within the same product line.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other Harwin M50 series socket variants with matching 1.27 mm pitch and dual row geometry. Verify equivalent position counts and terminal plating specifications when evaluating alternative part numbers.
