M50-4701545

Headers, Male Pins Overview

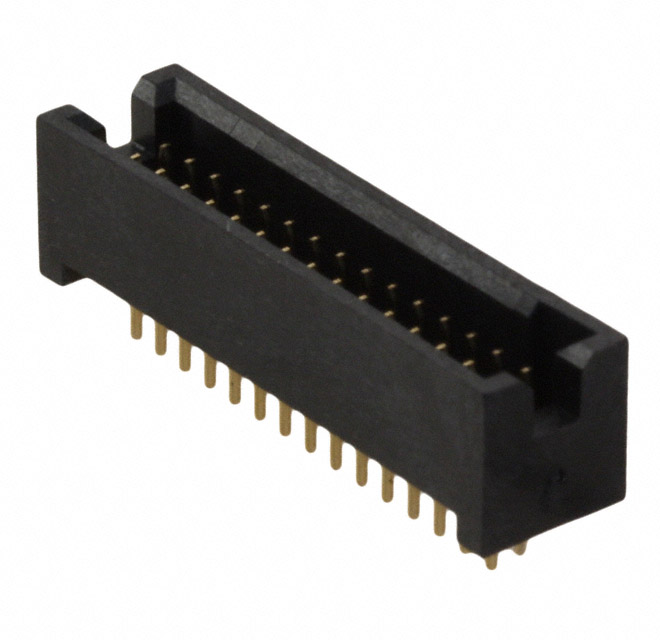

The Harwin M50-4701545 is a male pin header assembly from the ARCHER M50 series, designed for through-hole mounting. It features a dual in-line (DIL) configuration with 30 positions arranged in two rows. The connector utilizes a 1.27 mm pitch and includes integrated mounting pegs to ensure precise alignment during PCB assembly. The contacts are gold-plated phosphor bronze, housed in black liquid crystal polymer (LCP), and rated for operation between -40°C and +105°C.

Headers, Male Pins Feature Summary

• Dual row vertical pin header design with integrated mounting pegs for accurate board placement
• Gold-plated phosphor bronze contacts ensuring reliable electrical connectivity
• Black liquid crystal polymer housing providing high thermal stability and UL 94 V-0 flammability rating

Headers, Male Pins Applications

• Board-to-board interconnections requiring high-density signal routing
• Wire-to-board connections utilizing compatible ARCHER sockets
• Industrial control systems operating within extended temperature ranges
• Automotive electronic modules demanding robust mechanical retention

Headers, Male Pins Procurement Notes

Verify the specific suffix code against the manufacturer's official datasheet to confirm exact contact count and housing variations. Ensure compatibility with mating socket assemblies from the same ARCHER M50 family. Confirm RoHS compliance status and lead times directly with authorized distributors prior to finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 30-position, 1.27 mm pitch male header with through-hole termination is required. The inclusion of mounting pegs makes it suitable for applications needing enhanced mechanical stability during soldering. Verify that the mating interface supports the specified current rating and voltage requirements for the target application environment.

Headers, Male Pins Part Context

This part belongs to the ARCHER M50 series, a comprehensive line of connectors known for their compact form factor and high reliability. The series offers various configurations including shrouded headers, sockets, and cable assemblies, all sharing a consistent 1.27 mm pitch to facilitate mixed-part system designs across different electronic industries.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Users should evaluate generic 1.27 mm DIL headers only if custom modifications to mounting pegs and housing materials are acceptable.
