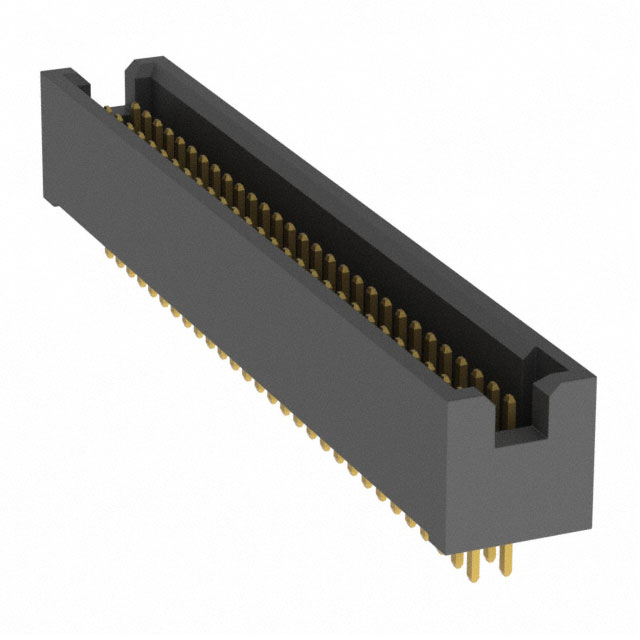

M50-4702945

Description：CONN HEADER VERT 58POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:0291744c62f2 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4702945 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 58POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-4702945

Description：CONN HEADER VERT 58POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：58
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：0.091" (2.30mm)
Overall Contact Length：-
Insulation Height：0.224" (5.69mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-4702945

M50-4702945

Headers, Male Pins Overview

The Harwin M50-4702945 is a dual-row board-to-board header from the Archer series. It features 58 positions with a 1.27 mm pitch and vertical orientation. The connector utilizes gold-plated brass contacts for reliable signal transmission. Designed for surface-mount technology, it offers a shrouded structure to ensure correct mating alignment. The component supports a current rating of 1 A and withstands voltages up to 500 V.

Headers, Male Pins Feature Summary

Dual-in-line configuration with shrouded housing for precise alignment
Gold-plated contacts ensure low contact resistance and durability
Vertical surface-mount design facilitates compact PCB integration

Headers, Male Pins Applications

High-density electronic assemblies requiring robust interconnects
Industrial control systems with strict environmental tolerances
Telecommunications equipment utilizing standard board-to-board interfaces

Headers, Male Pins Procurement Notes

Verify end-of-life status before procurement as this part may be discontinued. Confirm availability through authorized distributors or direct manufacturer channels. Request official discontinuation notifications to assess supply chain risks. Ensure compatibility with existing assembly processes if substituting. Validate RoHS compliance documentation for regulatory adherence.

Headers, Male Pins Selection Notes

Select this component when high pin density and vertical mounting are required. The 1.27 mm pitch allows for compact layouts in space-constrained designs. Gold plating provides superior corrosion resistance compared to tin finishes. Verify that the 500 V rating meets system electrical requirements. Consider mechanical stability provided by the shrouded header design.

Headers, Male Pins Part Context

This connector belongs to the Harwin Archer M50 family, known for precision engineering in dense interconnect applications. The series supports various termination styles including SMT and IDC options. Components in this line typically feature high reliability standards suitable for demanding industrial environments. The specific model represents a high-count variant within the standard pitch range.
