M50-4703045

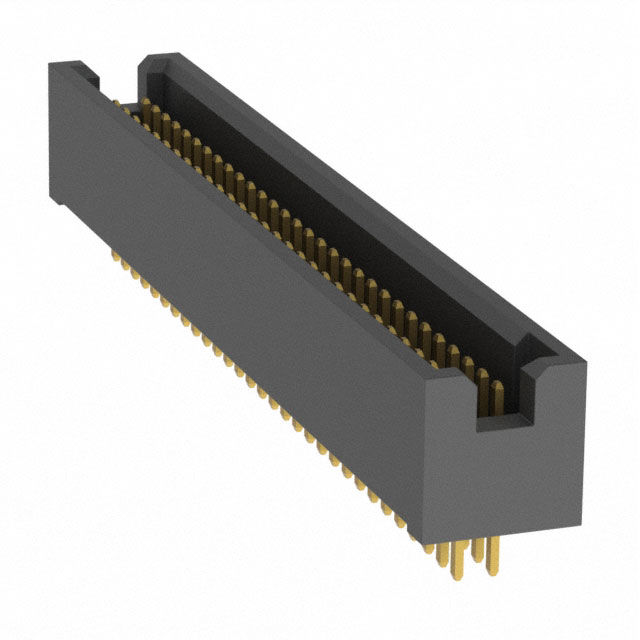

Description：CONN HEADER VERT 60POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube

SKU:2ae15a9ee364 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

M50-4703045 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Harwin Inc.. Its product description is CONN HEADER VERT 60POS 1.27MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for M50-4703045

Description：CONN HEADER VERT 60POS 1.27MM
Series：Archer M50
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.050" (1.27mm)
Number of Positions：60
Number of Rows：2
Row Spacing - Mating：0.050" (1.27mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：-
Contact Length - Post：0.091" (2.30mm)
Overall Contact Length：-
Insulation Height：0.224" (5.69mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：-
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for M50-4703045

M50-4703045

Headers, Male Pins Overview

The Harwin M50-4703045 is a vertical board-to-board header from the ARCHER M50 series. It features 60 positions arranged in a dual in-line (2 row) configuration with a 1.27 mm pitch. The connector utilizes gold-plated phosphor bronze contacts and a black thermoplastic housing. Designed for through-hole solder termination, it supports a current rating of 1 A and a voltage rating of 500 V. The component operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

Shrouded design prevents misalignment during mating
Gold-plated contacts ensure reliable signal transmission
Vertical orientation facilitates compact PCB integration

Headers, Male Pins Applications

High-density electronic assemblies
Industrial control systems
Communication equipment

Headers, Male Pins Procurement Notes

Verify the specific pin count and contact plating against project requirements before ordering. Confirm that the through-hole mounting style aligns with the manufacturing process capabilities. Ensure the operating environment remains within the specified thermal limits to maintain long-term reliability.

Headers, Male Pins Selection Notes

Select this component when a high-pin-count, vertically oriented interconnect is required. The 1.27 mm pitch allows for dense circuit layouts while maintaining adequate spacing. Consider the shrouded structure if precise alignment between mating boards is critical for the application.

Headers, Male Pins Part Context

This part belongs to the Harwin ARCHER M50 series, known for its robust construction and high reliability. The series offers various configurations including surface mount and different pin counts, catering to diverse connectivity needs in demanding electronic environments.
