M50-4800945

Headers, Male Pins Overview

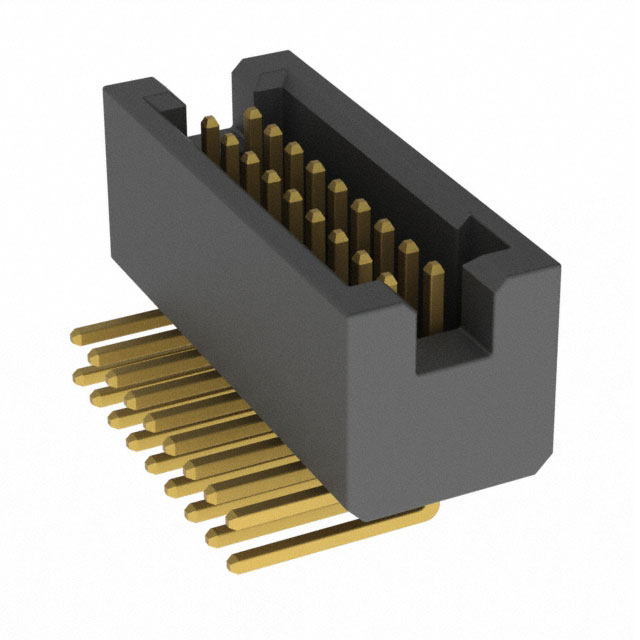

The Harwin M50-4800945 is a right-angle board-to-board header connector from the ARCHER M50 series. It features a 1.27 mm pitch and an 18-position configuration (9+9) in a dual in-line format. The component utilizes gold-plated contacts on a copper alloy base, housed within a black shrouded structure made of liquid crystal polymer. Designed for surface-mount or through-hole applications with a solder pin termination, it supports a current rating of 1 A and a voltage rating of 300 V. The operating temperature range spans from -40°C to +105°C.

Headers, Male Pins Feature Summary

• Right-angle orientation facilitates compact vertical interconnections in dense electronic assemblies.
• Shrouded housing design ensures precise alignment and protection during mating processes.
• Gold plating on copper alloy contacts provides reliable conductivity and corrosion resistance.

Headers, Male Pins Applications

• Board-to-board interconnections in space-constrained electronic modules
• Vertical mounting configurations in industrial control systems
• High-density signal routing in consumer electronics

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm exact mechanical dimensions and termination style. Ensure compatibility with mating connectors regarding pitch and row configuration. Cross-reference RoHS compliance status with current regulatory requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this model when right-angle connectivity is required for 1.27 mm pitch applications. Confirm that the PCB layout accommodates the specific height and footprint of the shrouded header. Validate thermal management capabilities against the 105°C maximum operating limit for the intended environment.

Headers, Male Pins Part Context

This component belongs to the ARCHER M50 series, known for high-density interconnect solutions. The series offers various configurations including straight and right-angle headers with different position counts. The M50-4800945 specifically addresses needs for angled connections in compact designs.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 1.27 mm pitch, 18-position count, right-angle orientation, and shrouded design. Verify electrical ratings and material composition to ensure equivalent performance in critical applications.
